Battery Energy Control Module (BECM) (MKZ)

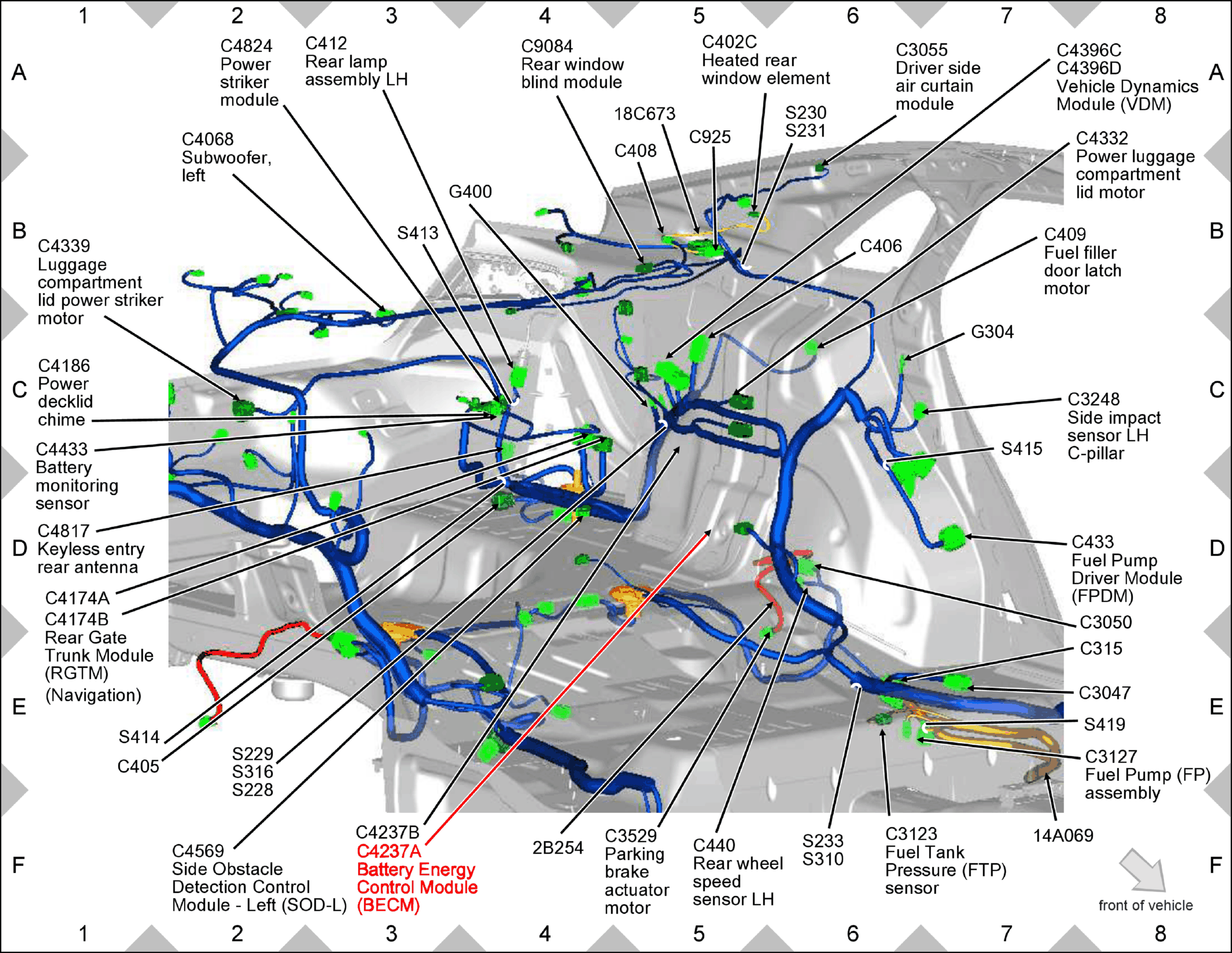

Fig 1: Battery Energy Control Module (BECM) (MKZ) Components Location

GFDW81389

Courtesy of FORD MOTOR COMPANY
