Battery Energy Control Module (BECM) (HEV)

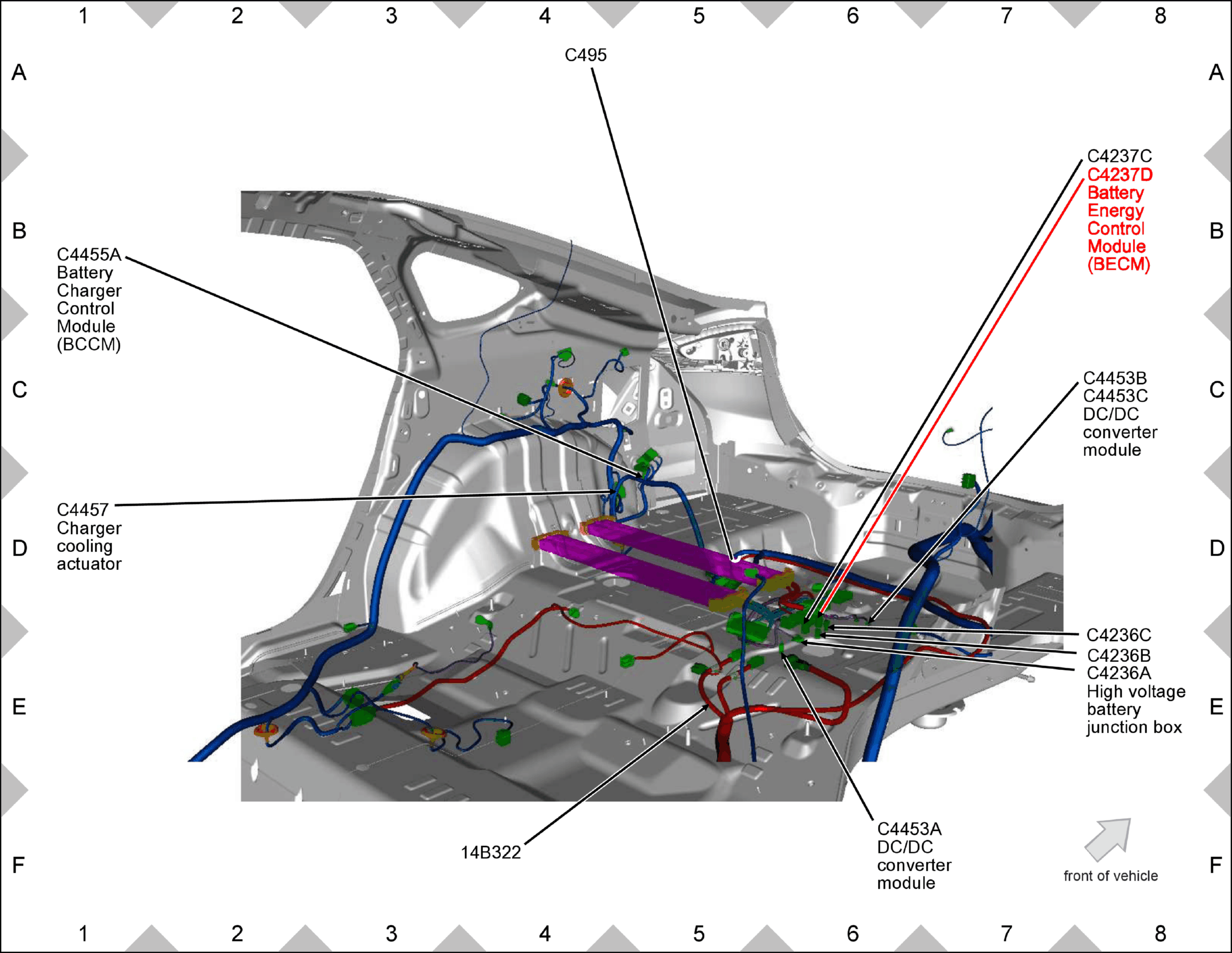

Fig 1: Battery Energy Control Module (BECM) (HEV) Components Location

GFDW81388

Courtesy of FORD MOTOR COMPANY
