Battery Charger Control Module (BCCM)

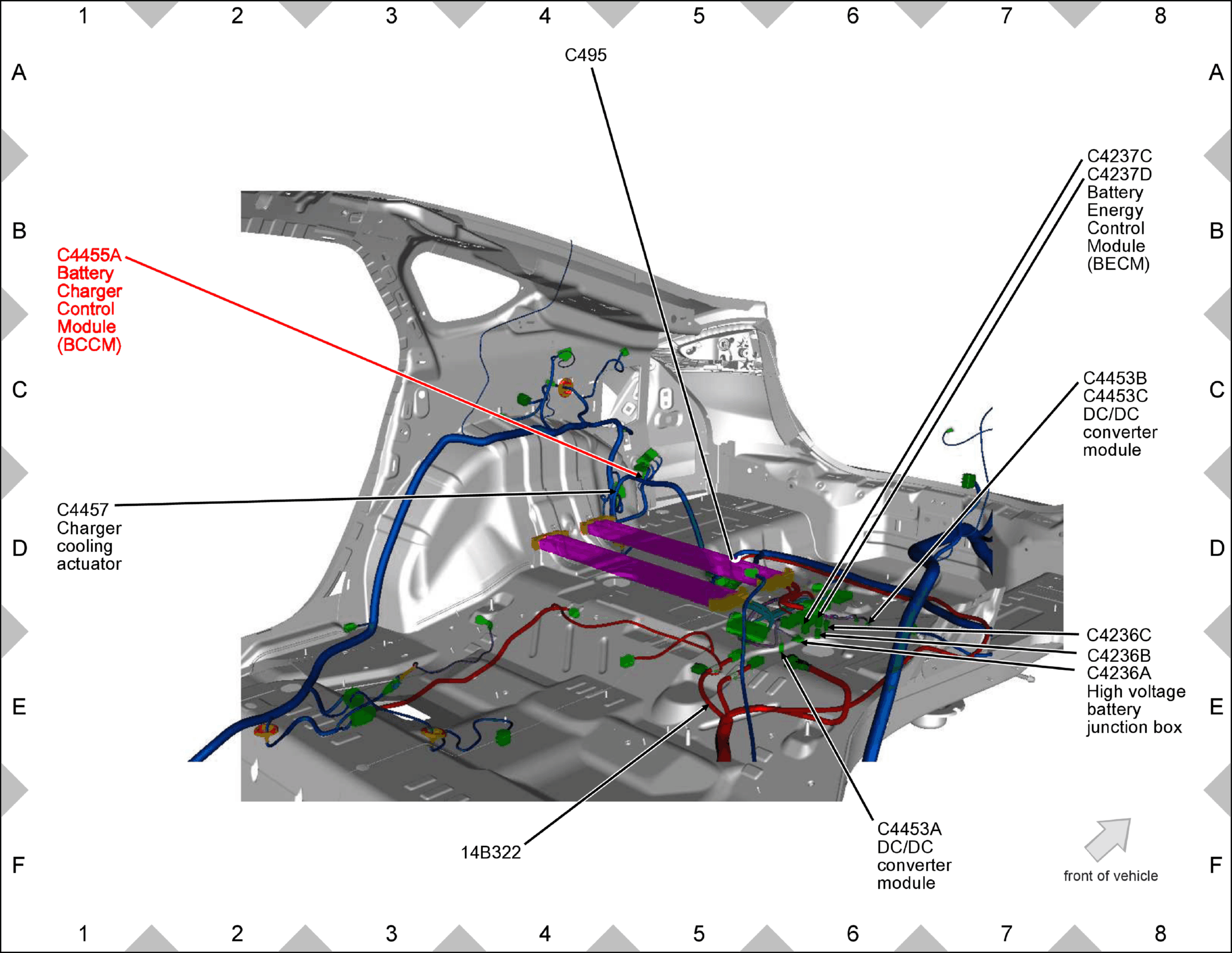

Fig 1: Battery Charger Control Module (BCCM) Components Location

GFDW81385

Courtesy of FORD MOTOR COMPANY
