Audio Digital Signal Processing (DSP) module (MKZ)

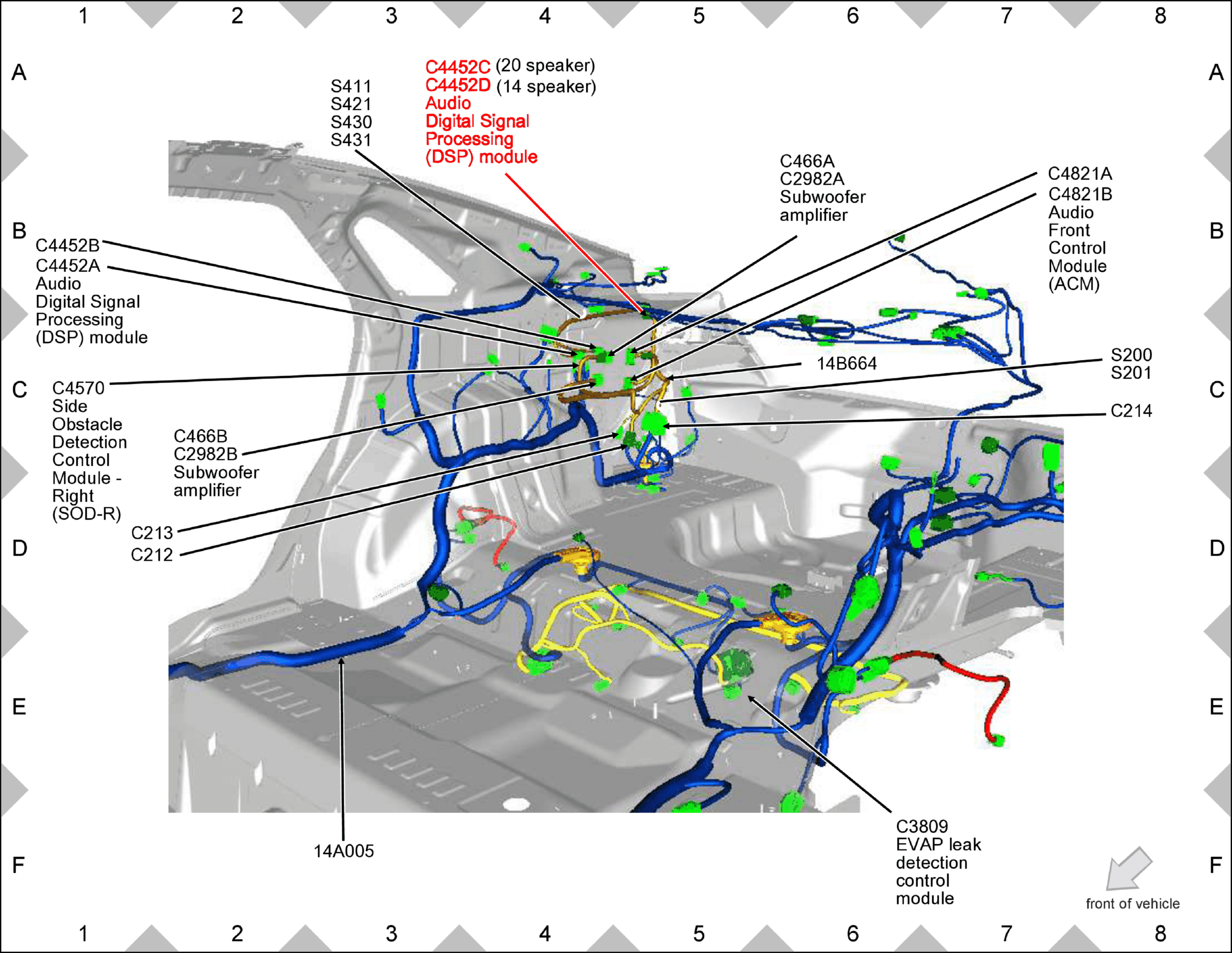

Fig 1: Audio Digital Signal Processing (DSP) module (MKZ) Components Location

GFDW81372

Courtesy of FORD MOTOR COMPANY
