Audio Control Module (ACM) (Fusion)

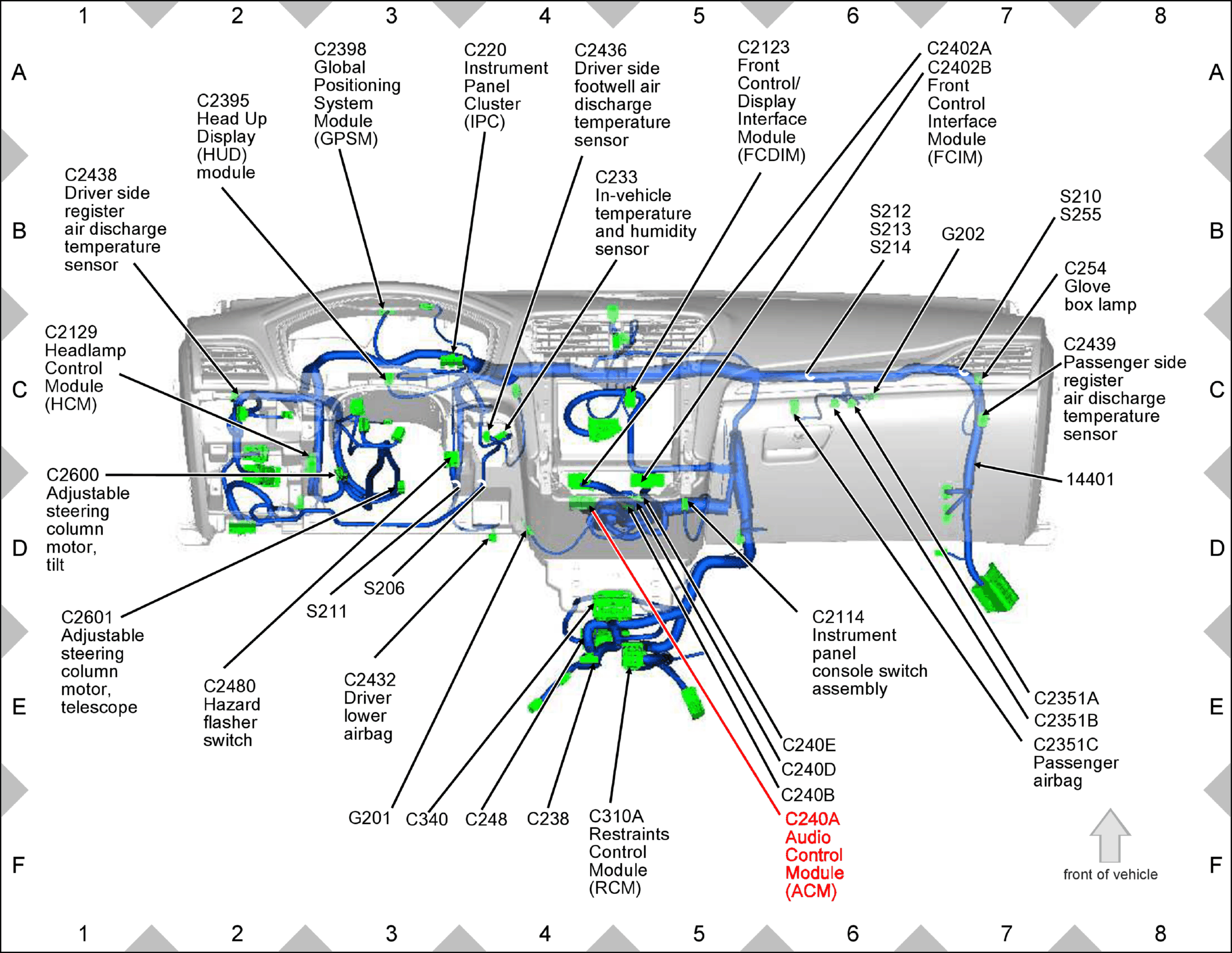

Fig 1: Audio Control Module (ACM) (Fusion) Components Location

GFDW81370

Courtesy of FORD MOTOR COMPANY
