OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Approaching vehicle audible control module (MKZ)
Approaching vehicle audible control module (MKZ)

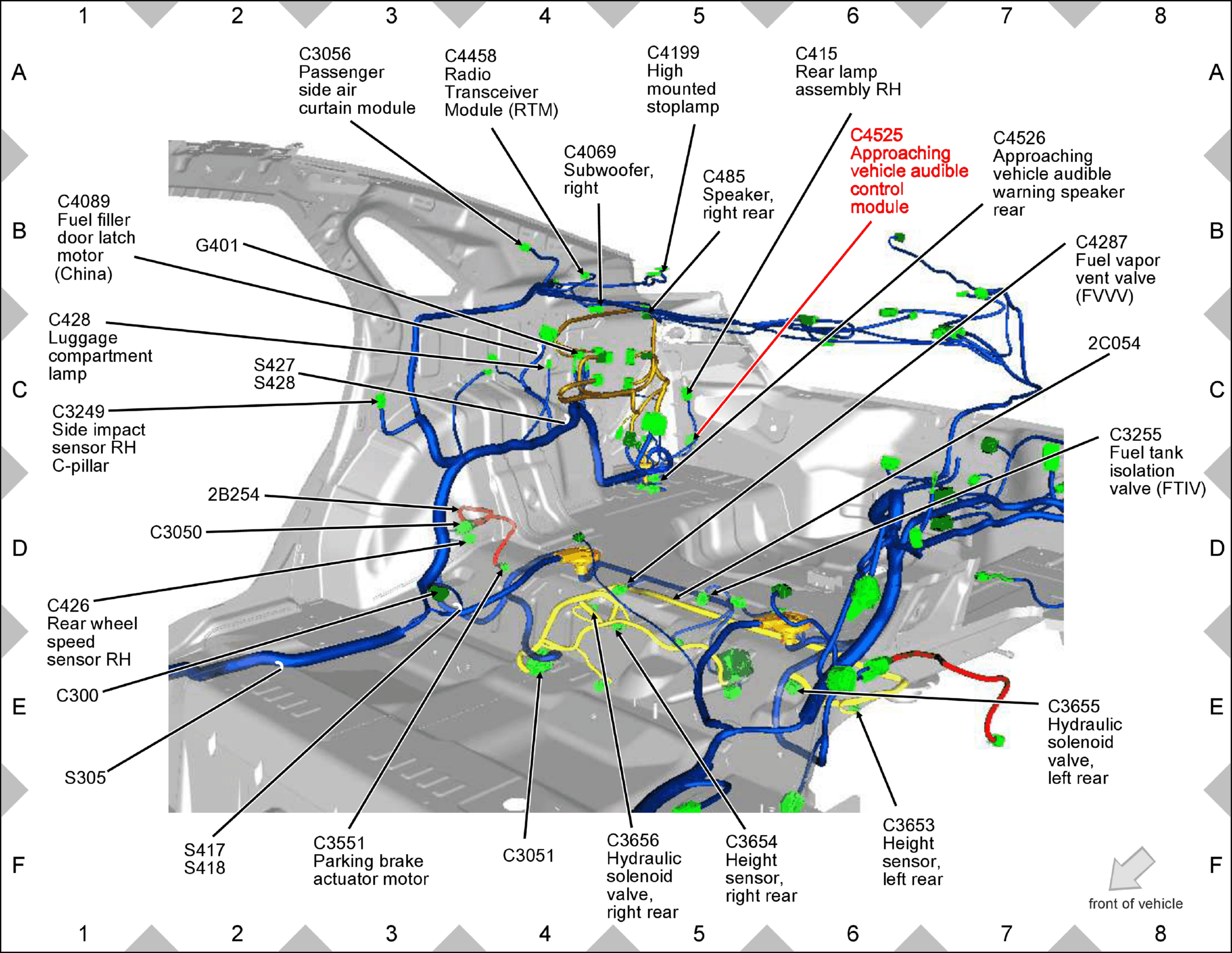

Fig 1: Approaching vehicle audible control module (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
