Home >> Ford >> 2018 >> Fusion Energi Titanium >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI) >> Component Location Charts >> Air Conditioning Control Module (ACCM)

Air Conditioning Control Module (ACCM)

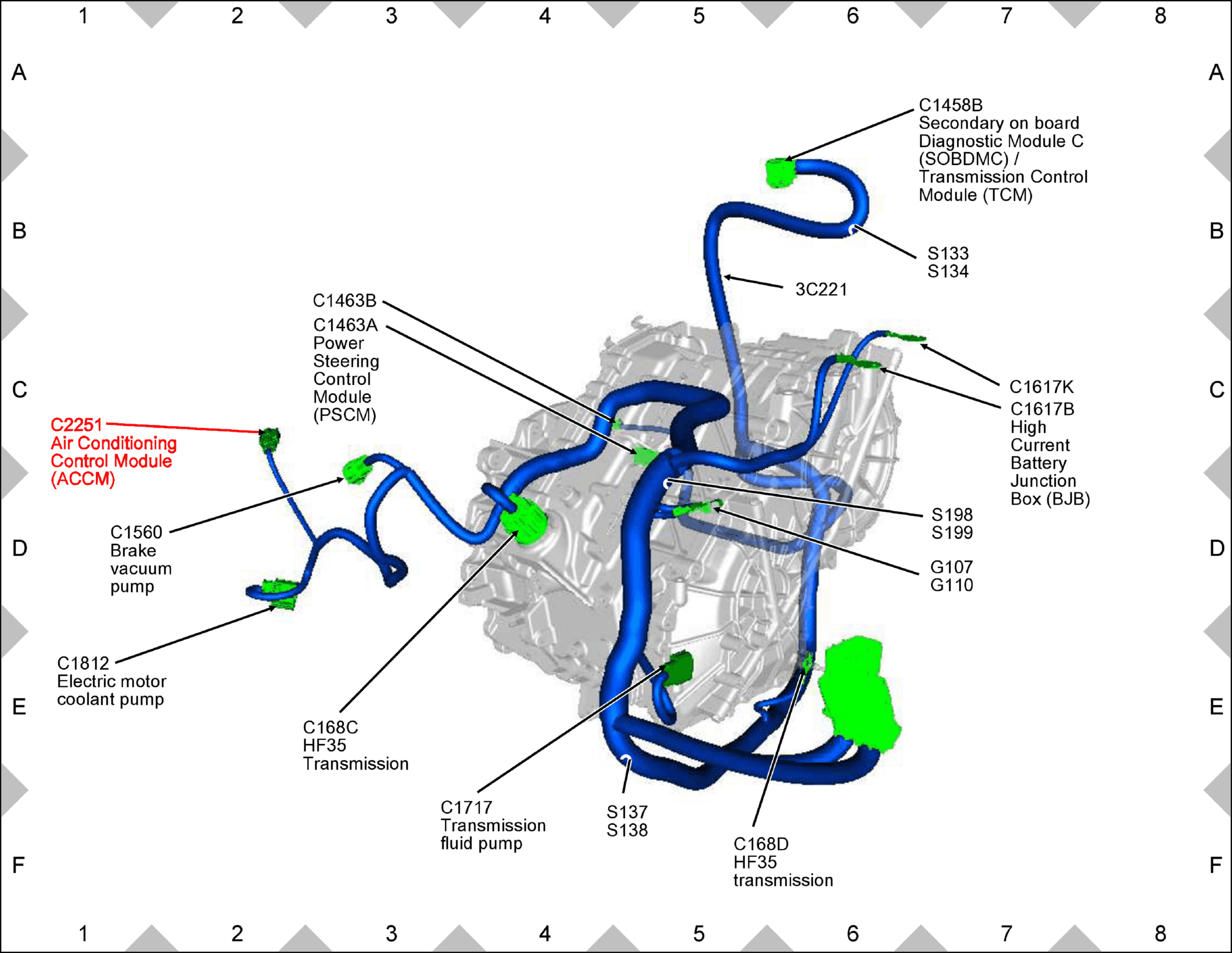

Fig 1: Air Conditioning Control Module (ACCM) Components Location

GFDW81360

Courtesy of FORD MOTOR COMPANY
