Accelerator Pedal Position (APP) sensor

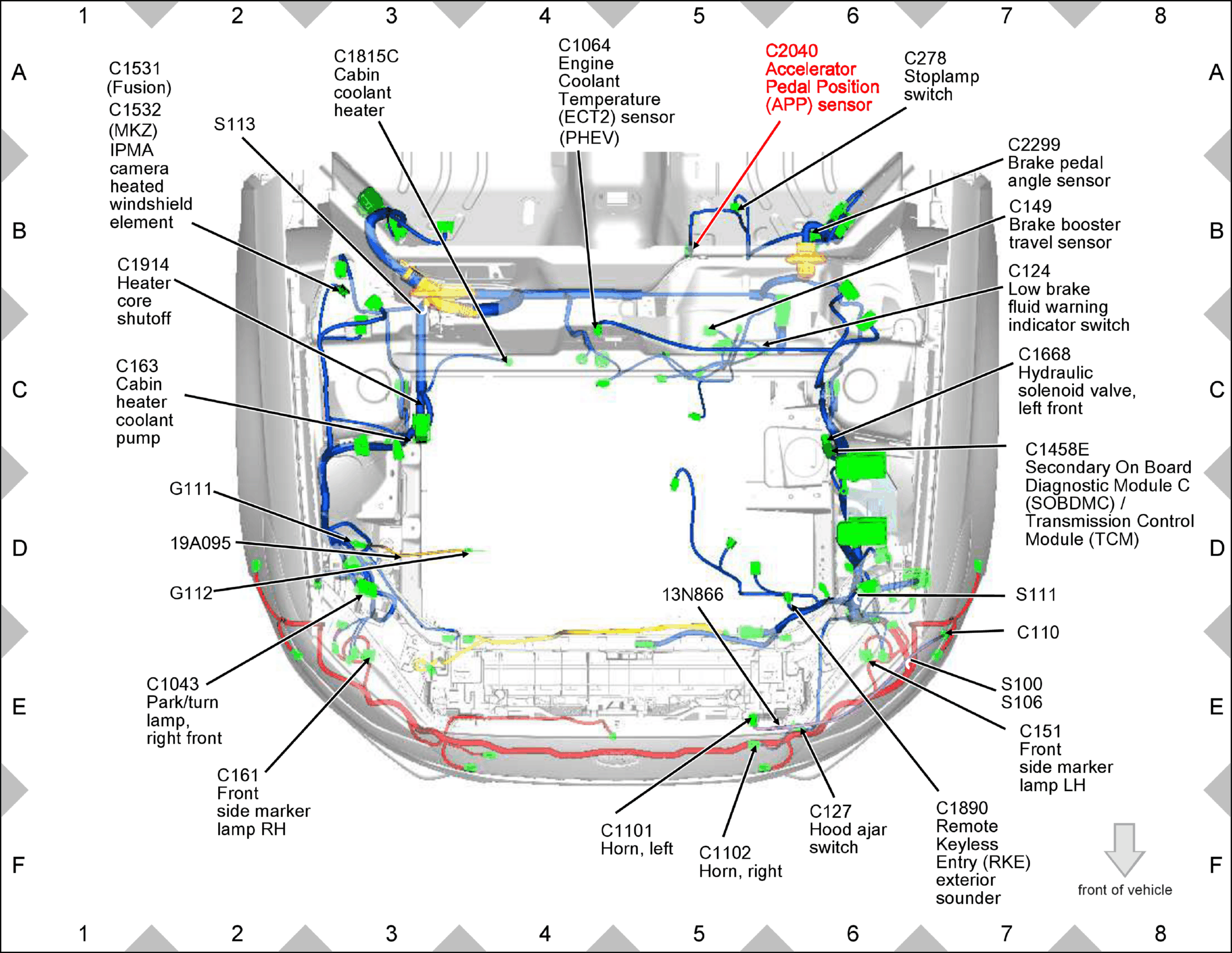

Fig 1: Accelerator Pedal Position (APP) sensor Components Location

GFDW81346

Courtesy of FORD MOTOR COMPANY
