Connector Repair Procedures

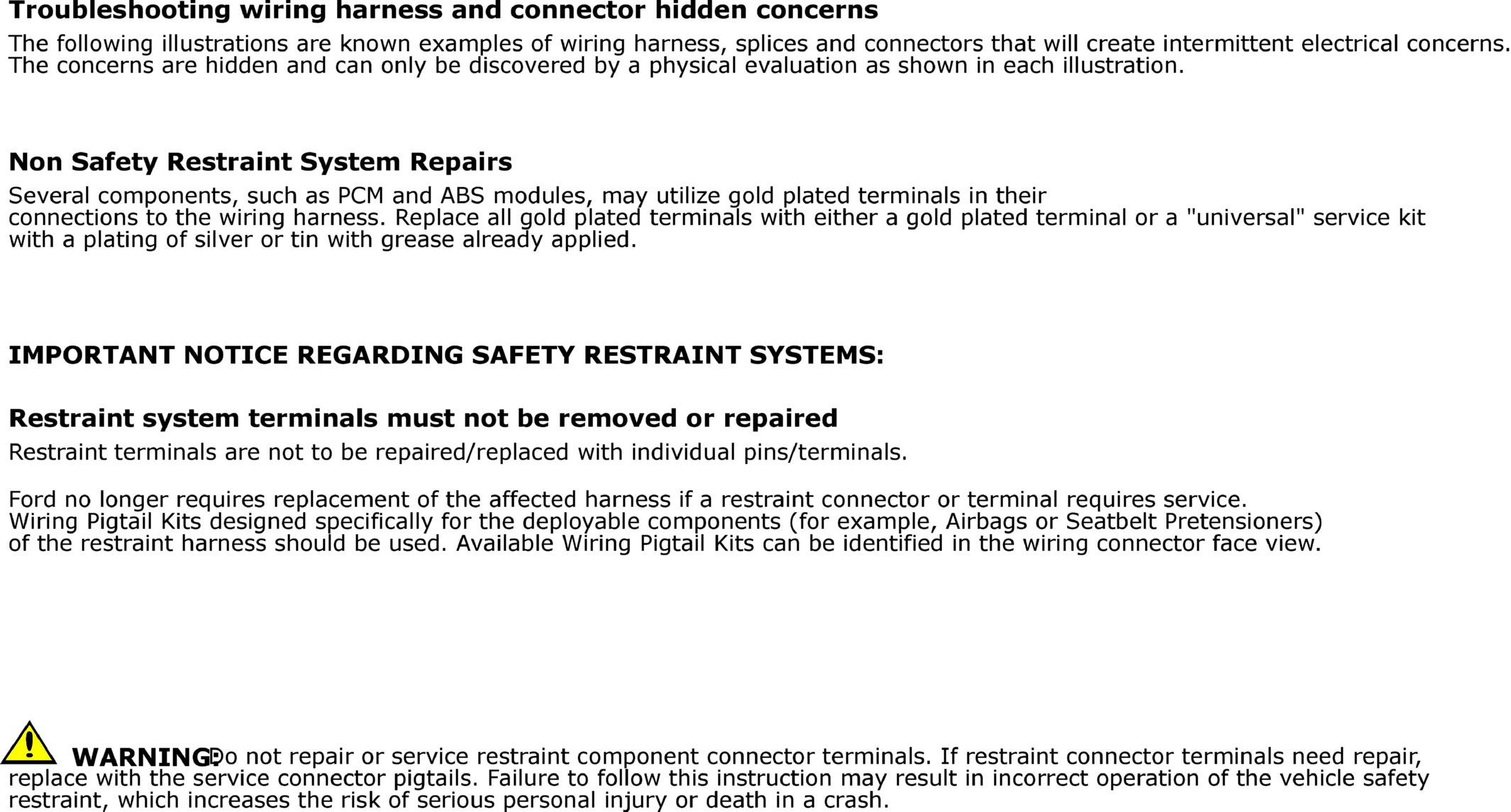

GFDW80863Courtesy of FORD MOTOR COMPANY

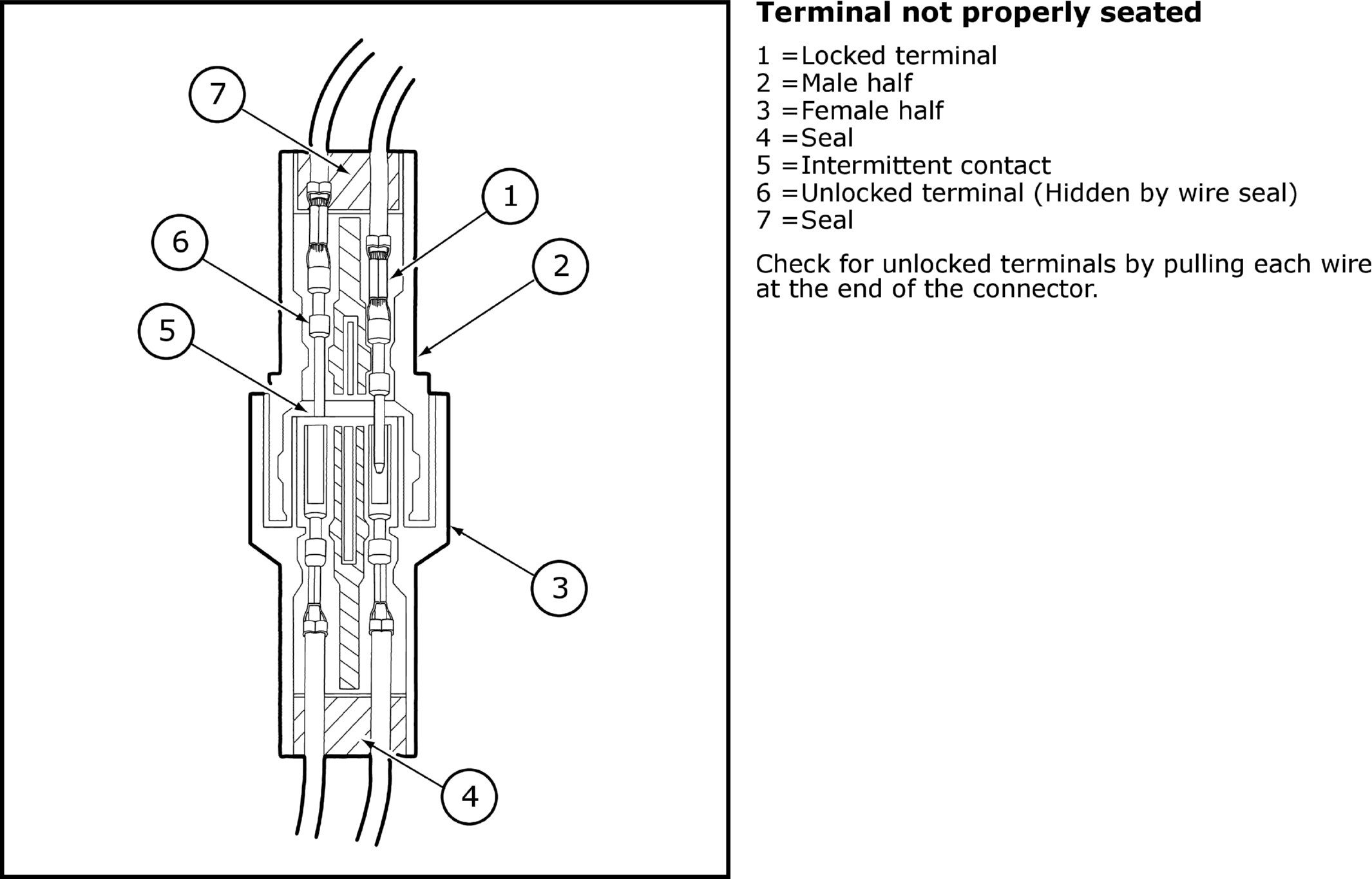

GFDW80864Courtesy of FORD MOTOR COMPANY

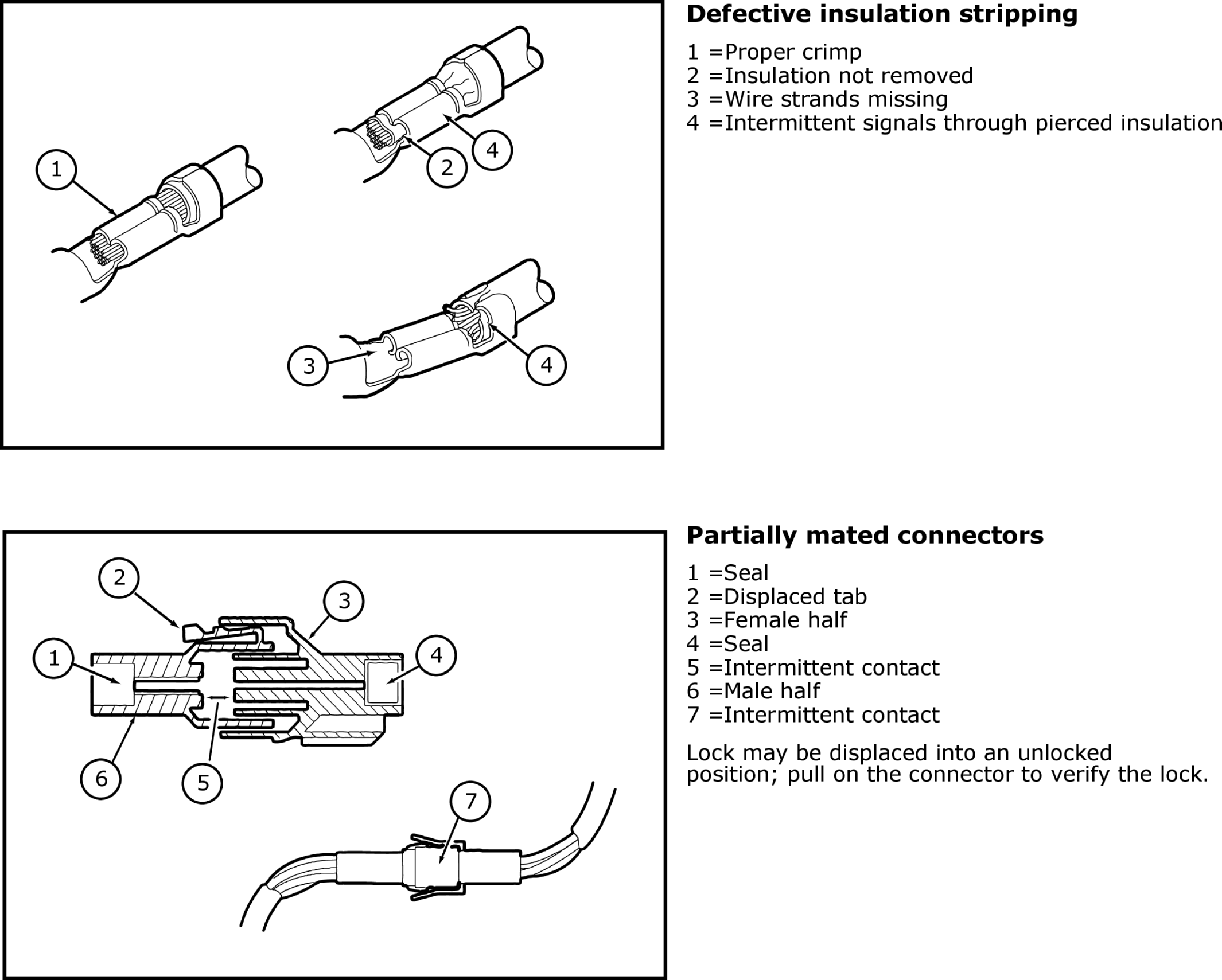

GFDW80865Courtesy of FORD MOTOR COMPANY

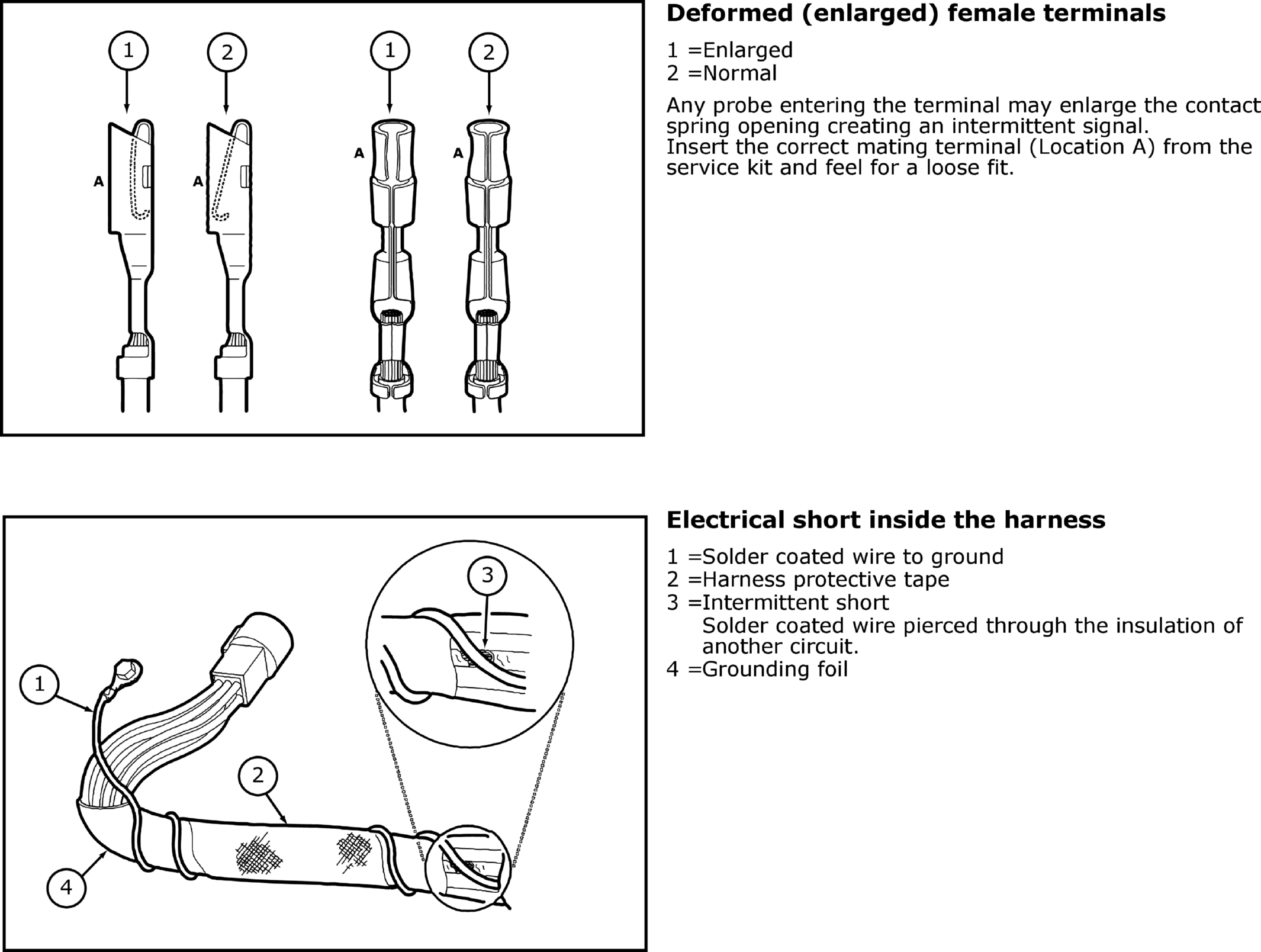

GFDW80866Courtesy of FORD MOTOR COMPANY

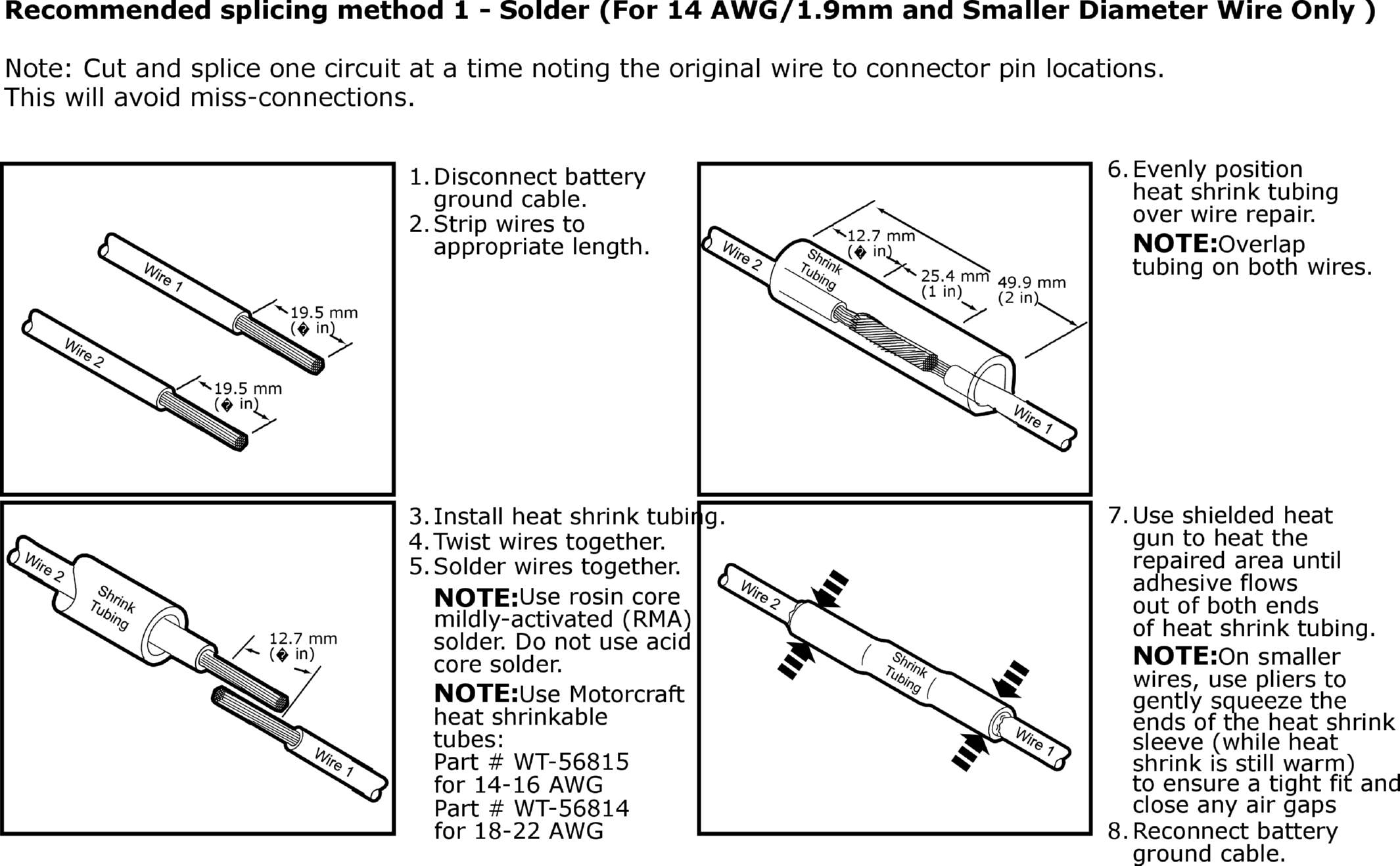

GFDW80867Courtesy of FORD MOTOR COMPANY

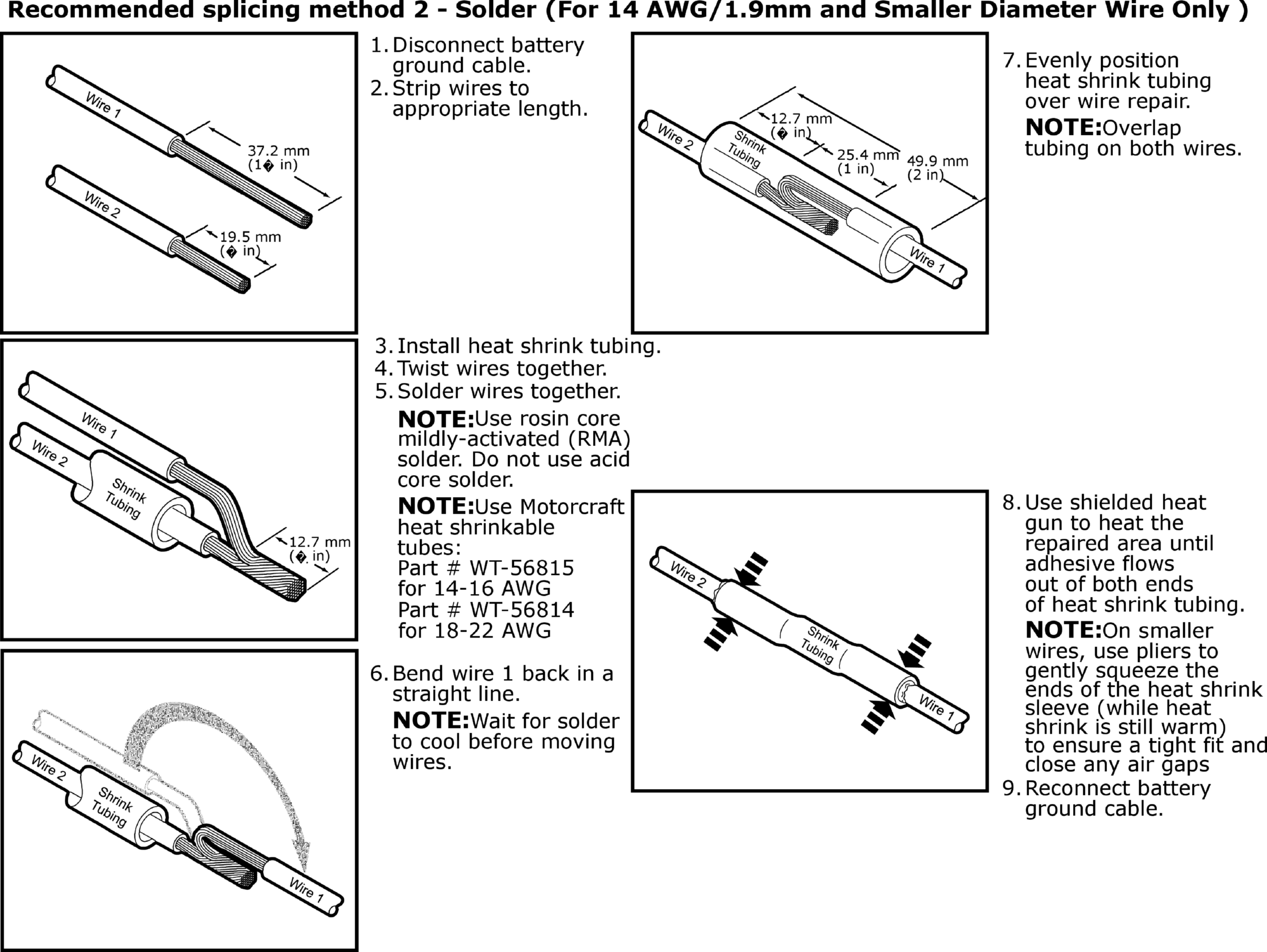

GFDW80868Courtesy of FORD MOTOR COMPANY

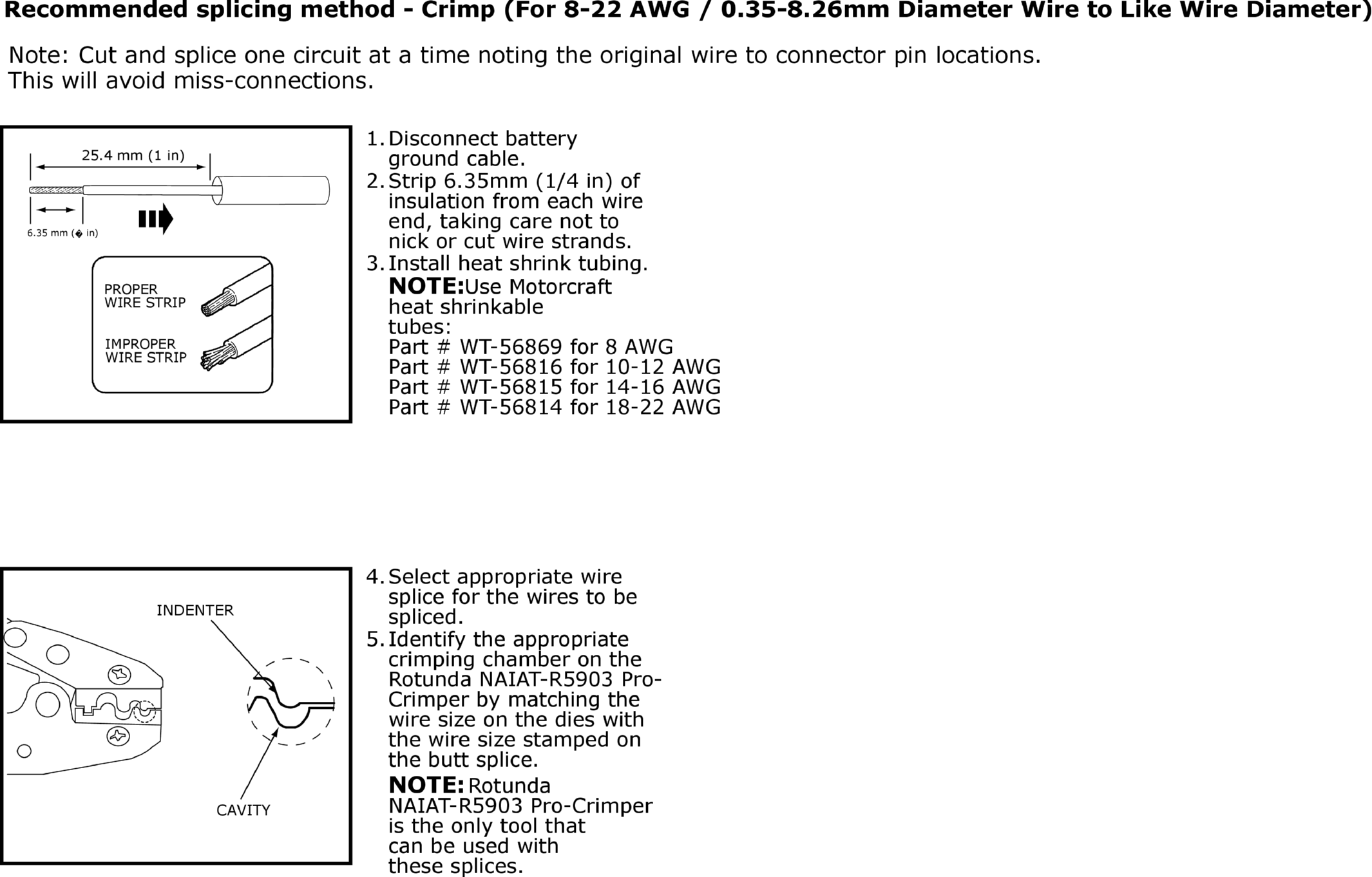

GFDW80869Courtesy of FORD MOTOR COMPANY

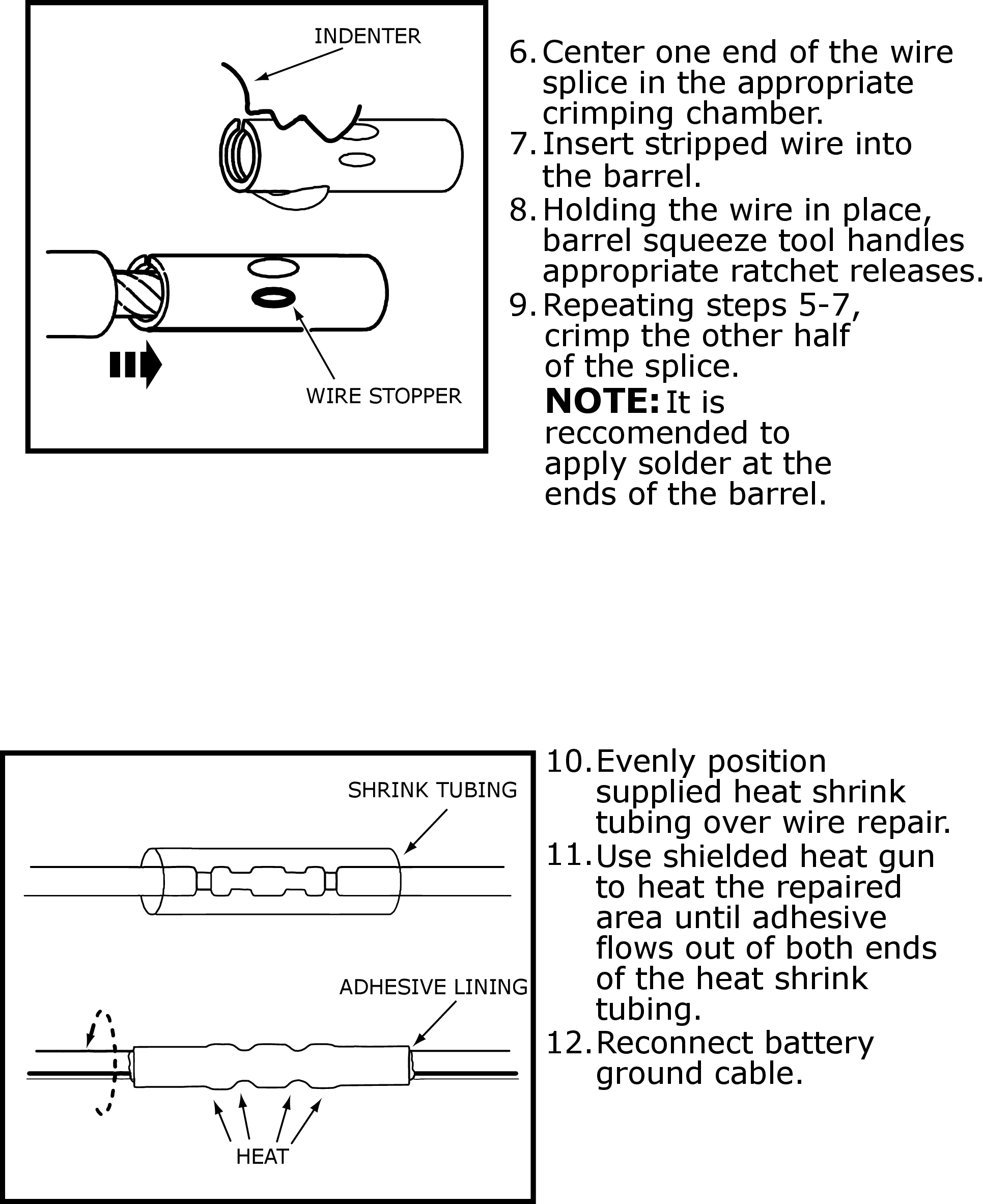

GFDW80870Courtesy of FORD MOTOR COMPANY

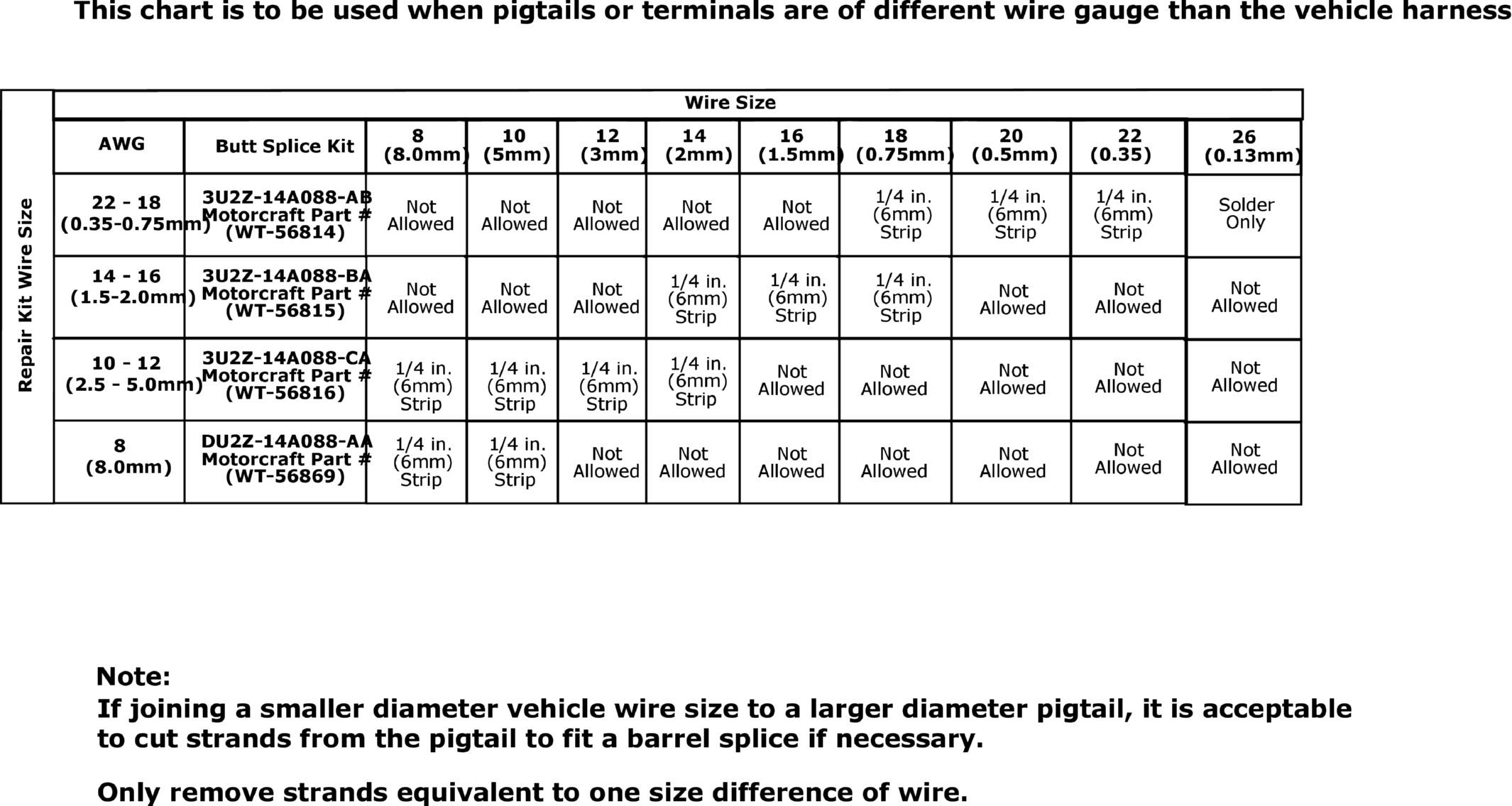

GFDW80871Courtesy of FORD MOTOR COMPANY
