Rear Stabilizer Bar: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

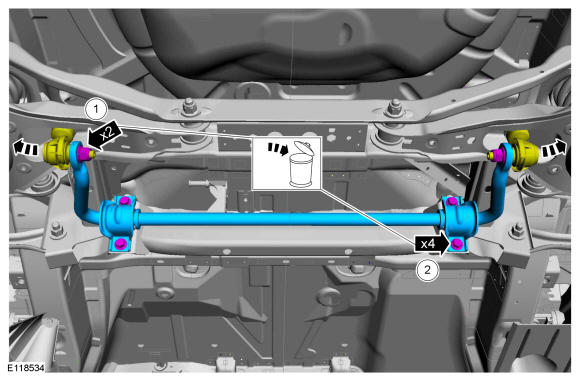

1. Remove and discard the rear stabilizer bar link nuts and position the rear stabilizer bar links aside.
2. Remove and discard the rear stabilizer bar bracket bolts and remove the rear stabilizer bar.
Courtesy of FORD MOTOR COMPANY
Inspect and, if necessary, install new stabilizer bar bushings.
