Rear Lower Arm: Removal

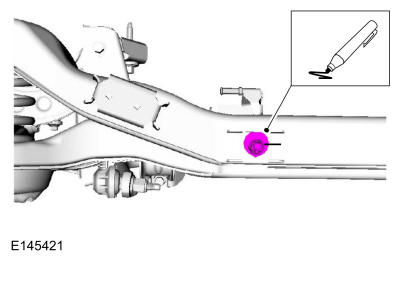

- Mark the position of the rear lower arm adjustment cam to the rear subframe.
- Remove the spring. Refer to: Rear Coil Spring .

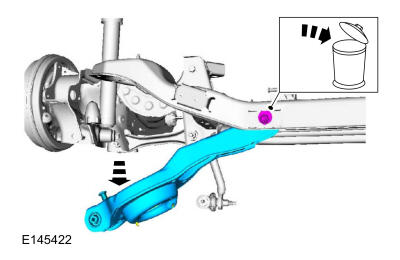

- Remove and discard the rear lower arm-to-rear subframe bolt, nut and washers and remove the rear lower arm.
