Rear Coil Spring: Removal
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Remove the wheel and tire. Refer to: Wheel and Tire .
- If equipped.

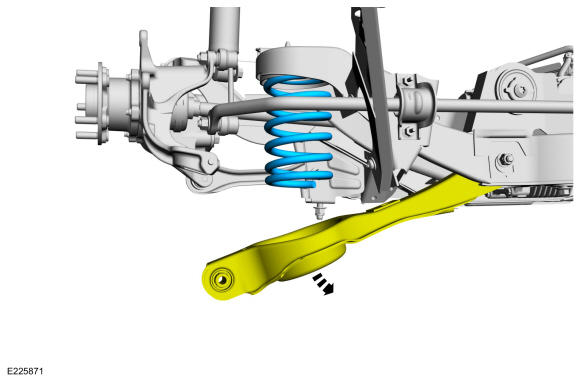

- Support the rear lower arm. Use the General Equipment: Vehicle/Axle Stands

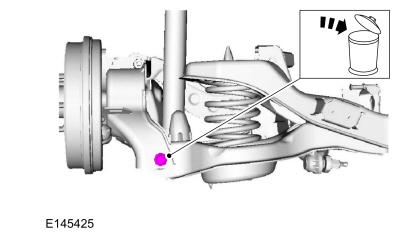

- Remove and discard the lower arm-to-trailing arm bolt.
- Lower the rear lower arm and remove the spring.
