Front Lower Arm: Installation

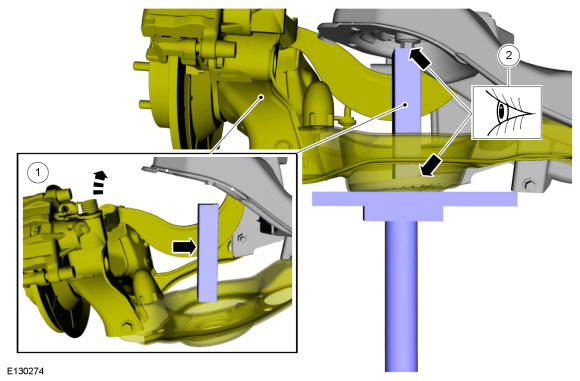

1. Position the correct spacer.
2. Verify the spacer is placed properly. Use the General Equipment: Transmission Jack
Courtesy of FORD MOTOR COMPANY
NOTE: The forward lower arm is marked FRONT. Make a note of the position of the front lower arm to aid installation.

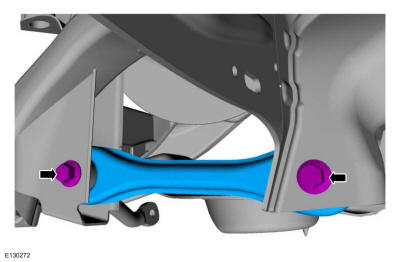

Install the front lower arm and install the new front lower arm bolts.

Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Install the spring. Refer to: Rear Coil Spring
