Front Lower Arm - RS: Installation
- Use the General Equipment: Transmission Jack
-
NOTE: Make sure that the component is installed to the position noted before removal.

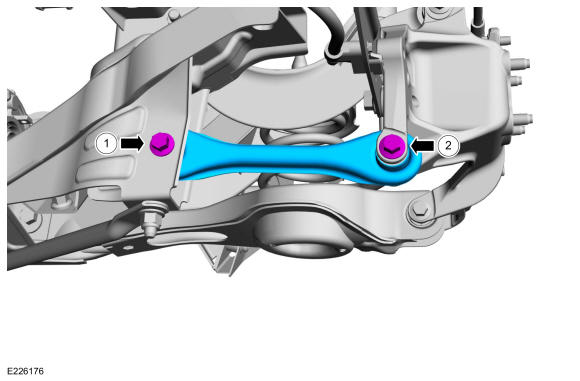

Torque
:1: 85 lb.ft (115 Nm) 2: 94 lb.ft (127 Nm)
- Install the spring. Refer to: Spring .
-
NOTE: This step is only necessary when installing a new component.
Refer to: Rear Toe Adjustment .
