Brake Shoe Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	206-D002 (D81L-1103-A) Gauge, Brake Adjustment

Activation

1. Refer to: Brake Drum .

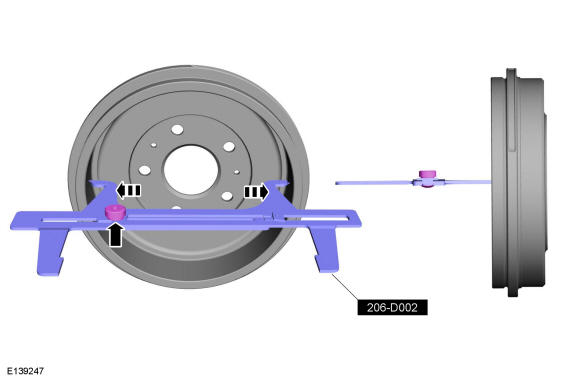

2. Using the special tool, measure the inside diameter of the brake drum. Use Special Service Tool: 206-D002 (D81L-1103-A) Gauge, Brake Adjustment.

   Courtesy of FORD MOTOR COMPANY

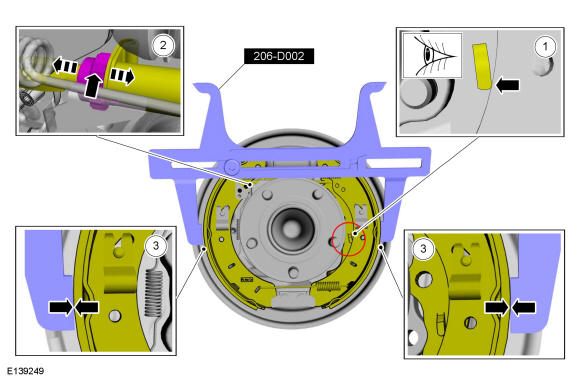

3. Position the special tool on the brake shoes and linings and adjust accordingly. Use Special Service Tool: 206-D002 (D81L-1103-A) Gauge, Brake Adjustment.

   Courtesy of FORD MOTOR COMPANY

4. Refer to: Brake Drum .
