Instrument Panel Upper Section: Removal

All vehicles

1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions .

2. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

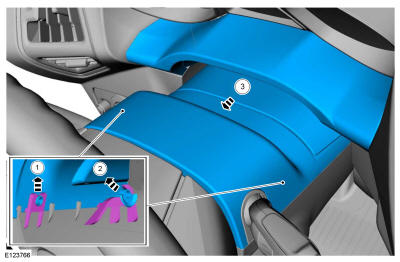

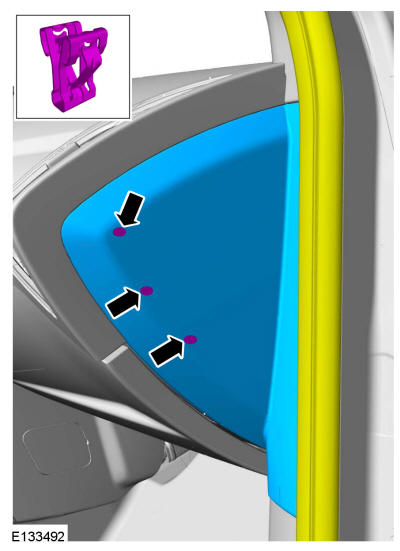

3. Remove the retainers and the RH insulation panel.

   Courtesy of FORD MOTOR COMPANY

4. Both sides. Position the front door weatherstrip aside, release the clips and remove the RH instrument panel finish panel.

   Courtesy of FORD MOTOR COMPANY

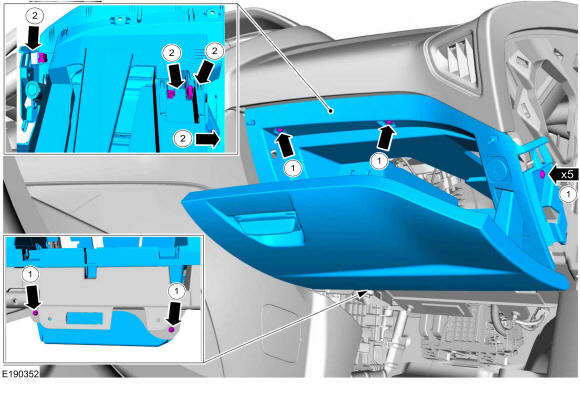

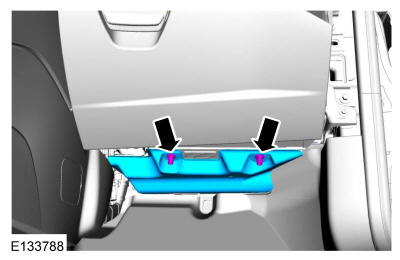

5. 1. Remove the glove compartment screws.

      Torque

      : 18 lb.in (2 Nm)

   2. NOTE: If equipped.

      Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

6. Disconnect the battery. Refer to: Battery Disconnect and Connect .

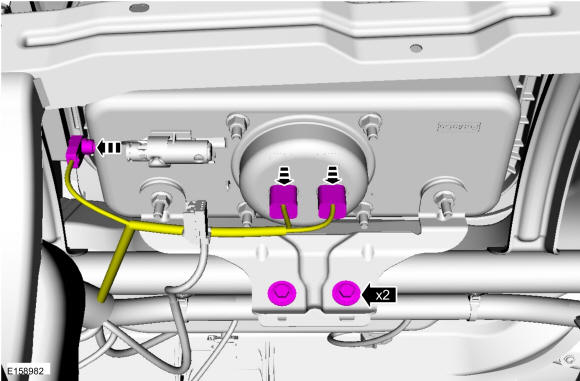

7. Disconnect the electrical connectors and remove the bolts.

   Torque

   : 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Remove the bolt.

   Courtesy of FORD MOTOR COMPANY

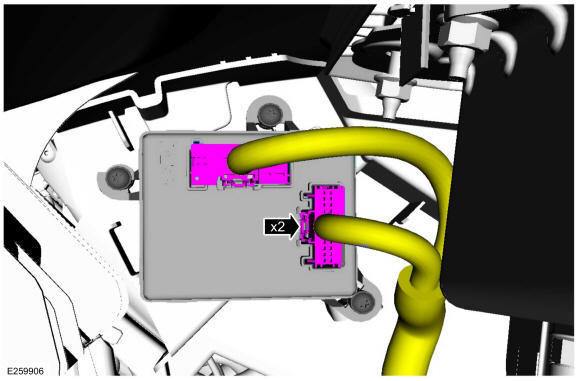

9. Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

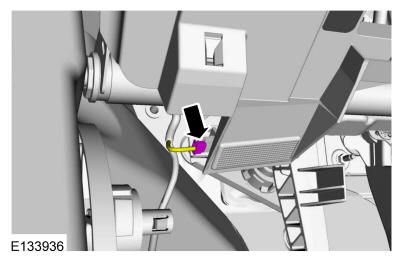

10. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

11. Remove the selector lever. Refer to: Selector Lever Assembly 6-Speed Automatic Transmission - 6F15 . Refer to: Selector Lever Assembly 6-Speed PowerShift Transmission - DPS6/6DCT250 . Refer to: Gearshift Lever - 6-Speed Manual Transmission - B6/6-Speed Manual Transmission - MMT6 . Refer to: GEARSHIFT LEVER - 5-SPEED MANUAL TRANSMISSION - B5 IB5 5-SPEED MANUAL TRANSMISSION - MTX75 .

    Vehicles with manual transmission

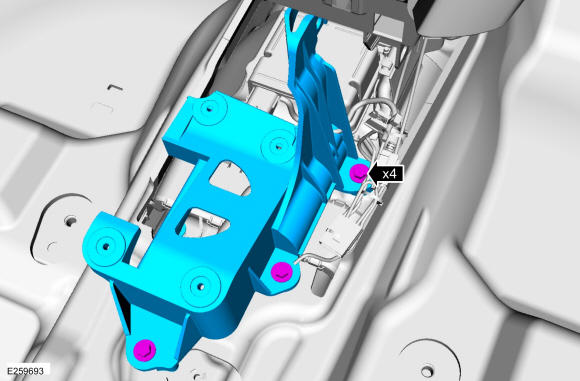

12. Remove the bolts and the manual transmission gear shift lever bracket.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

13. Depending on vehicle option content, remove the FCDIM or the FDIM. Refer to: Front Display Interface Module (FDIM) . Refer to: Front Control/Display Interface Module (FCDIM) .
14. If equipped with a FDIM. Refer to: Audio Front Control Module (ACM) Vehicles With: AM/FM/CD/SYNC . Refer to: Audio Front Control Module (ACM) Vehicles With: Sony Audio System .

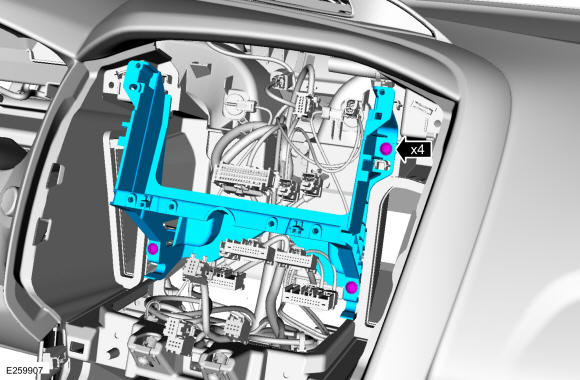

15. Remove the screws and the support bracket.

    Torque

    : 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

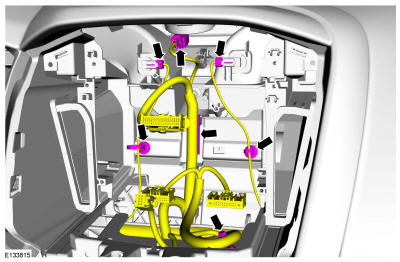

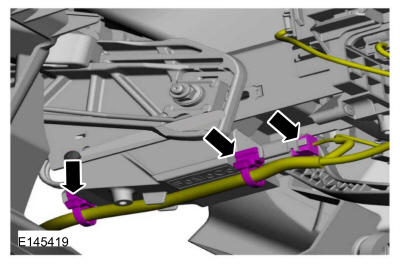

16. Disconnect the electrical connectors, detach the wiring harness retainers and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

17. Vehicles equipped with the premium audio system remove the APIM. Refer to: SYNC Module [APIM] .

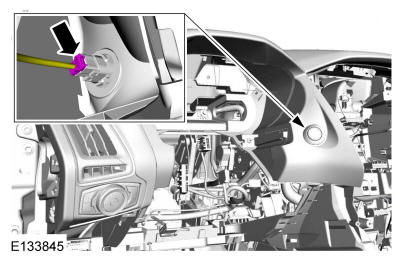

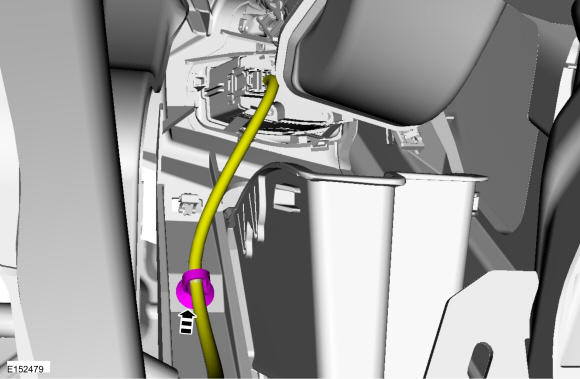

18. Disconnect the electrical connector and detach the wiring harness retainer at the front PATS antenna.

    Courtesy of FORD MOTOR COMPANY

19. Remove the driver knee air bag. Refer to: Driver Knee Airbag .
20. Remove the retainer and the steering column opening trim panel.
    • Disconnect and position aside the air sensor.

    Courtesy of FORD MOTOR COMPANY

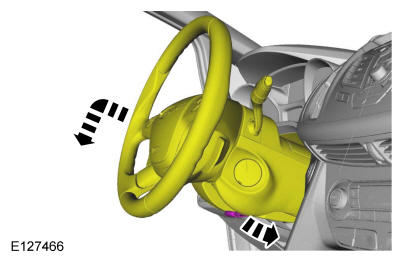

21. Position the steering column to the full forward and down position.

    Courtesy of FORD MOTOR COMPANY

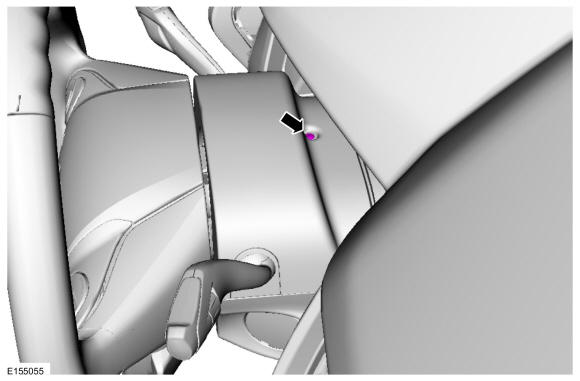

22. NOTE: If equipped.

    Remove the retainer.

    Courtesy of FORD MOTOR COMPANY

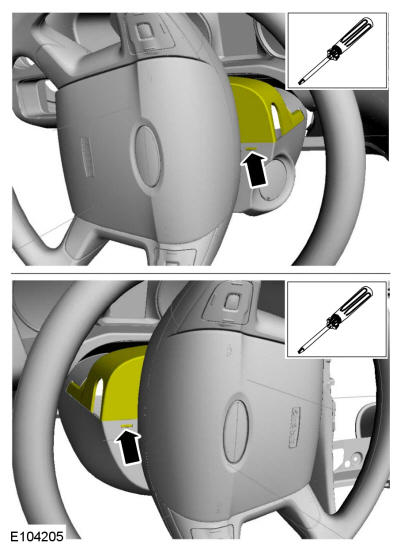

23. NOTE: Turn the steering wheel 90° to access the slots.
    1. Release the RH retaining tab.
    2. Release the LH retaining tab.

    Courtesy of FORD MOTOR COMPANY

24. Release the retaining tabs and remove the upper steering column shroud.

    Courtesy of FORD MOTOR COMPANY

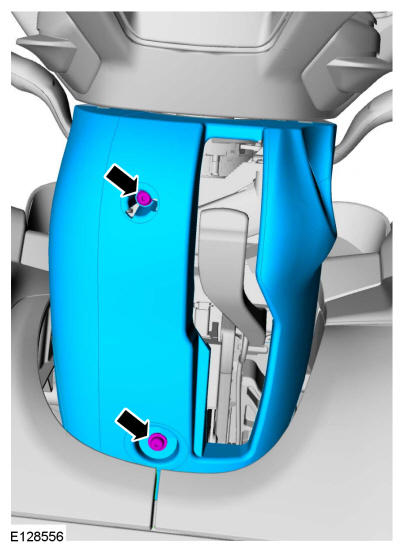

25. Remove the screws and the lower steering column shroud.

    Courtesy of FORD MOTOR COMPANY

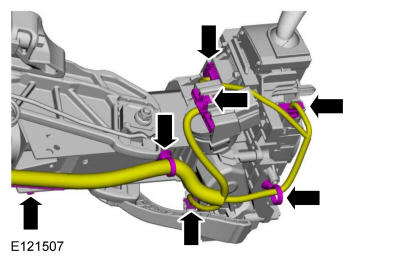

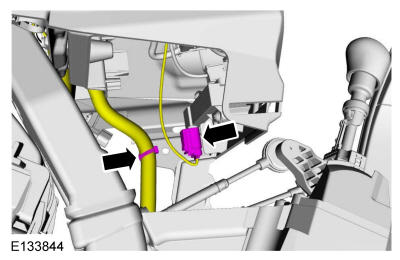

26. Vehicles without intelligent access. Disconnect the electrical connector and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

27. Vehicles with intelligent access. Disconnect the electrical connector and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

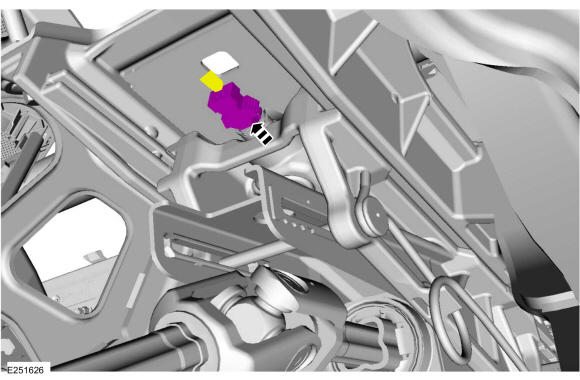

28. Disconnect the electrical connector at the back of the steering column.

    Courtesy of FORD MOTOR COMPANY

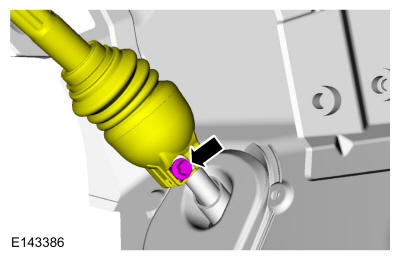

29. Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

    Torque

    : 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

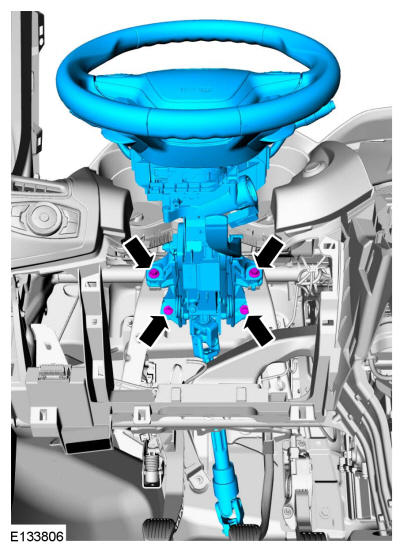

30. Remove and discard the 4 steering column bolts and remove the steering column.

    Torque

    : 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

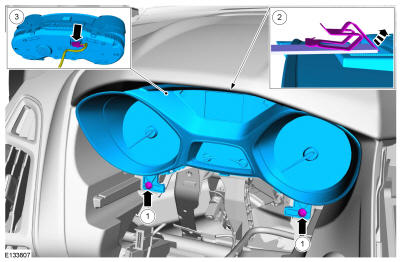

31. 1. Remove the screws.

       Torque

       : 9 lb.in (1 Nm)

    2. Release the clip.
    3. Disconnect the electrical connector and remove the IPC.

    Courtesy of FORD MOTOR COMPANY

32. If equipped with intelligent access Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

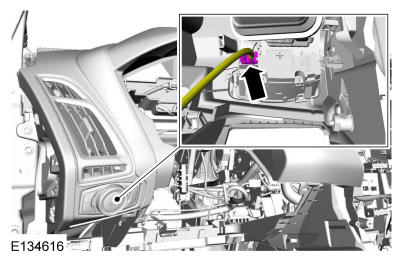

33. Disconnect the headlamp switch electrical connector.

    Courtesy of FORD MOTOR COMPANY

34. Detach the headlamp switch wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

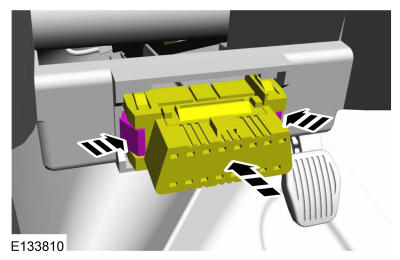

35. Release the retaining tabs and push the electrical connector inside.

    Courtesy of FORD MOTOR COMPANY

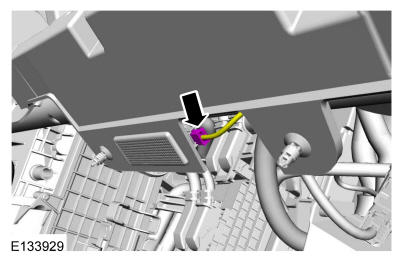

36. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

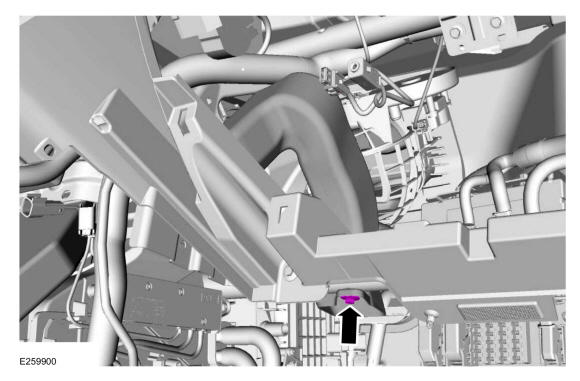

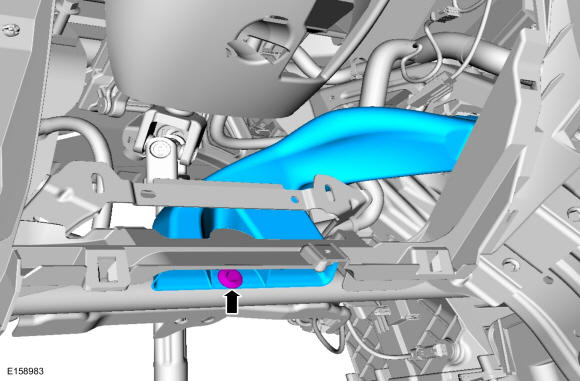

37. Remove the bolt and the HVAC duct.

    Courtesy of FORD MOTOR COMPANY

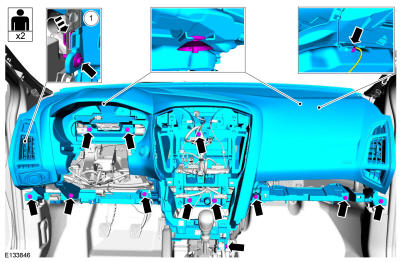

38. NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.
    NOTE: Make sure that all electrical connectors, wiring and vent tubes are not hindered before removing the upper section or damage to the components may occur.
    NOTE: Install all the bolts finger tight before final tightening.

    With the help of an assistant. Disconnect the electrical connector and detach the pin type harness retainer, release the clips and remove the bolts and slide the instrument panel upper section rearward.

    Torque

    : 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

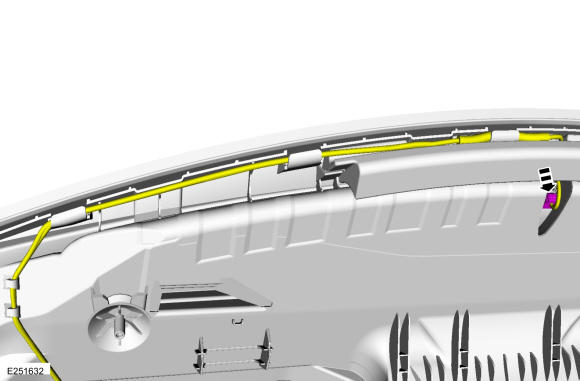

39. NOTE: This step is only required if the ambient light sensor harness is not equipped with an in-line connector.

    With the help of an assistant. Pull the instrument panel upper section rearward and disconnect the ambient light sensor electrical connector, position ambient light sensor harness aside and remove the instrument panel upper section.

Courtesy of FORD MOTOR COMPANY
