Auxiliary Power Point: Removal

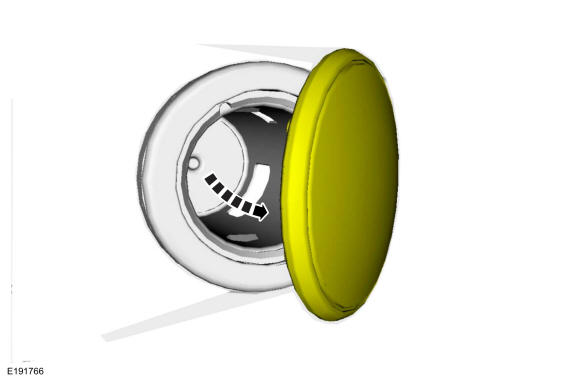

  1. Open the power point cover.
    GFD270257Courtesy of FORD MOTOR COMPANY

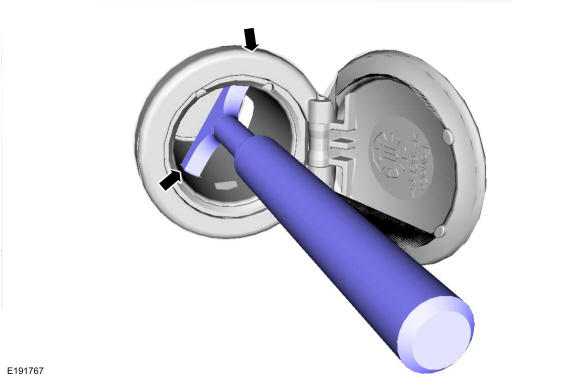

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD270258Courtesy of FORD MOTOR COMPANY

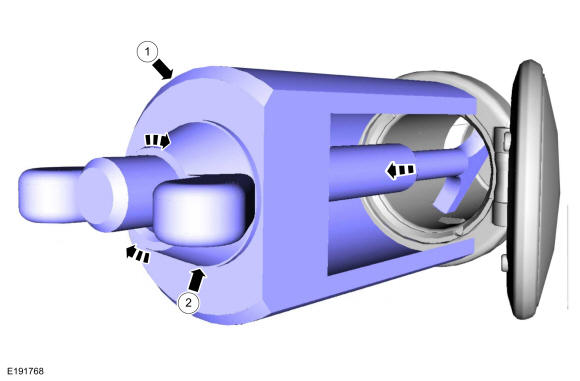

    • Install the receiver cup.

    • Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.

    GFD270259Courtesy of FORD MOTOR COMPANY
  4. Tighten the wing nut to pull the power point socket out of the retainer. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD270260Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD270261Courtesy of FORD MOTOR COMPANY
