Parking Brake Control: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the floor console. Refer to: Floor Console - Vehicles With: Center Armrest . Refer to: Floor Console - Vehicles Without: Center Armrest .

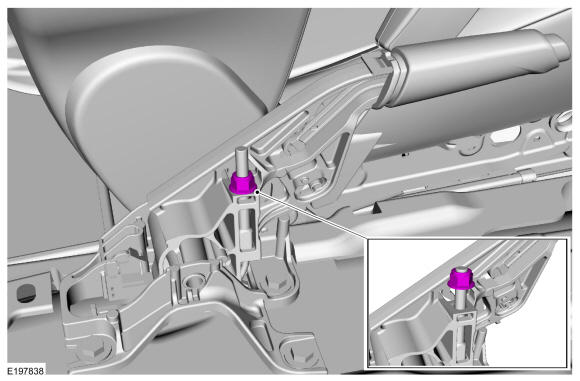

Loosen the parking brake cable adjustment nut.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

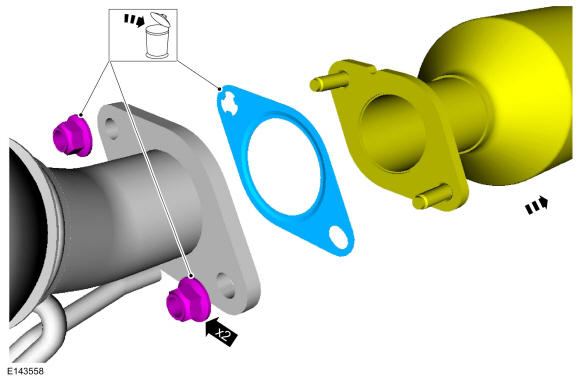

Remove and discard the nuts, detach the exhaust pipe and discard the gasket.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

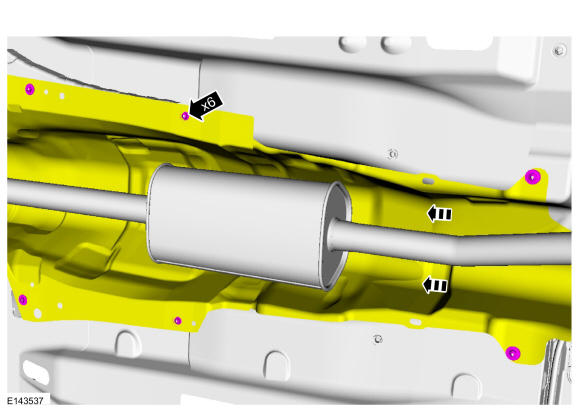

Remove the nuts and position the exhaust heat shield forward.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

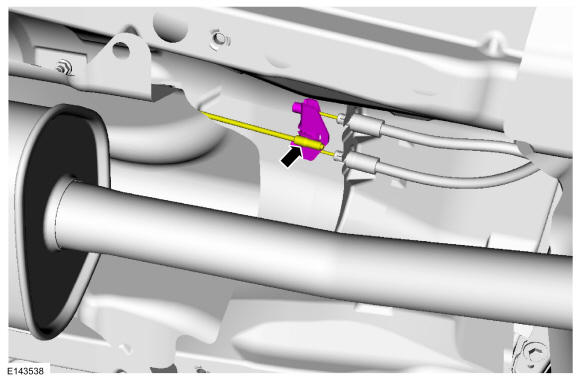

Detach the front parking brake cable from the equalizer.

Courtesy of FORD MOTOR COMPANY
NOTE: During installation, make sure the cable seal is fully seated.

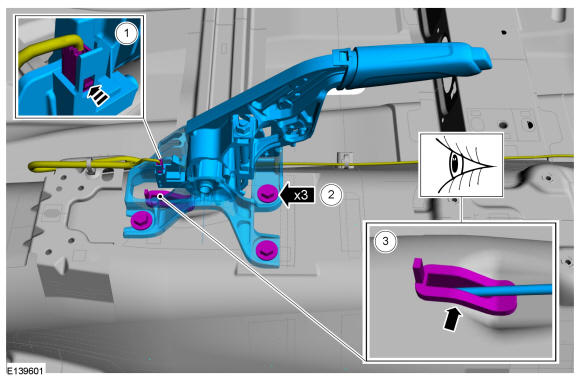

Remove the parking brake control.
1. Disconnect the parking brake switch electrical connector
2. Remove the bolts.
  Torque

  : 26 lb.ft (35 Nm)
3. Detach the cable seal and remove the parking brake control.

Courtesy of FORD MOTOR COMPANY
