Parking Brake Control - RS: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the floor console. Refer to: Floor Console - Vehicles With: Center Armrest . Refer to: Floor Console - Vehicles Without: Center Armrest .
  2. Loosen the parking brake cable adjustment nut.
    GFD264570Courtesy of FORD MOTOR COMPANY
  3. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  4. Remove the bolts and the bracket.

    Torque

    : 18 lb.ft (25 Nm)

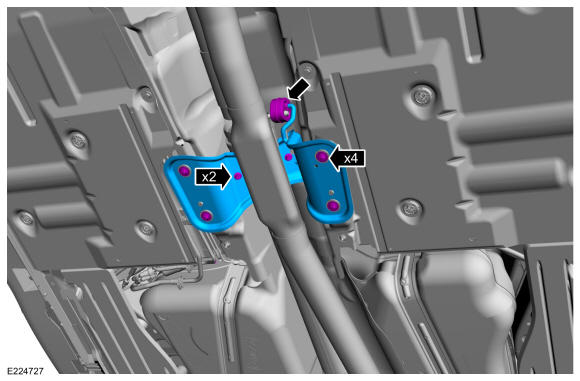

    GFD264583Courtesy of FORD MOTOR COMPANY

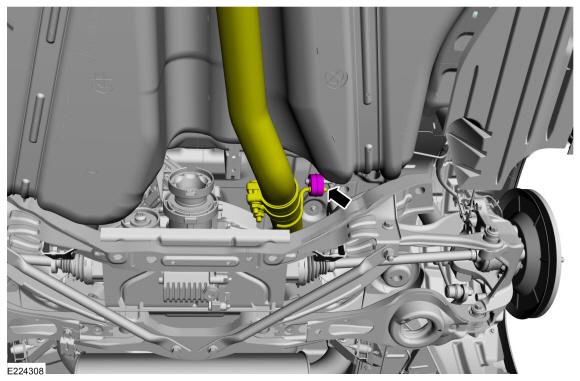

    GFD264357Courtesy of FORD MOTOR COMPANY

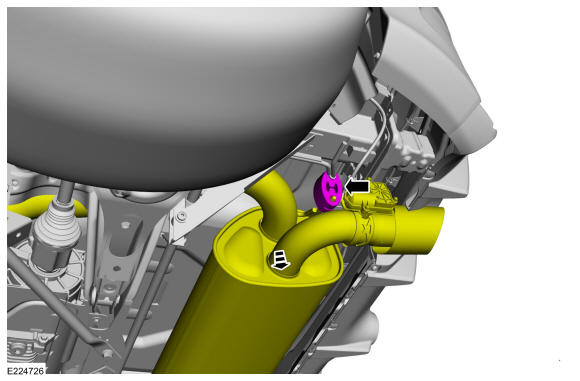

    GFD264584Courtesy of FORD MOTOR COMPANY
  5. Remove the nuts and lower the front exhaust heat shield. Remove the rear exhaust heat shield.

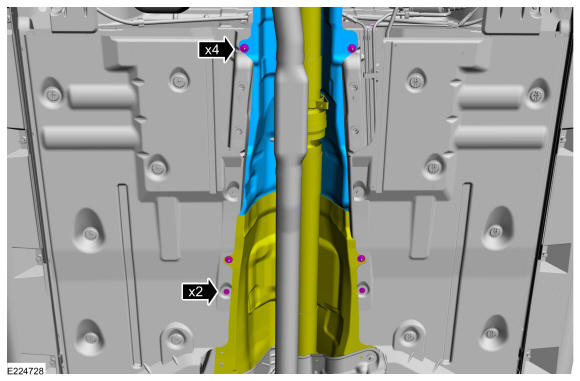

    GFD264585Courtesy of FORD MOTOR COMPANY
  6. Detach the front parking brake cable from the equalizer and detach the rear parking brake cables from the body.

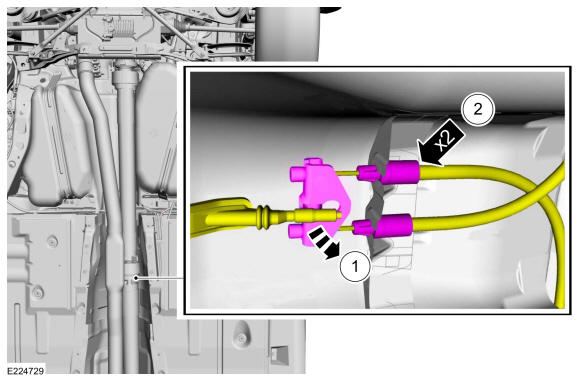

    GFD264586Courtesy of FORD MOTOR COMPANY
  7. NOTE: During installation, make sure the cable seal is fully seated.

    Remove the parking brake control.

    1. Disconnect the parking brake switch electrical connector
    2. Remove the bolts.

      Torque

      : 26 lb.ft (35 Nm)

    3. Detach the cable seal and remove the parking brake control.

GFD264572Courtesy of FORD MOTOR COMPANY
