Ride Height Measurement

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

NOTE: Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

- Ride height = 3-2
- Measurement 2
- Measurement 3
Courtesy of FORD MOTOR COMPANY
NOTE: Lock the surface gauge in this position.

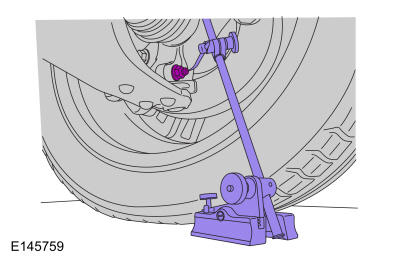

Position the surface gauge on the same flat, level surface, adjust the gauge arm until the scriber point is located in the center of the lower arm forward bolt.

Courtesy of FORD MOTOR COMPANY
With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2).

Courtesy of FORD MOTOR COMPANY
NOTE: Lock the surface gauge in this position.

Position a suitable surface gauge (such as Starrett 57D Surface Gauge), on a flat, level surface and adjust the gauge arm until the scriber point is located in the center of the ball joint bolt.

Courtesy of FORD MOTOR COMPANY
With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 3).

Courtesy of FORD MOTOR COMPANY
Subtract measurement 2 from measurement 3 to obtain the front ride height.

Check

NOTE: Ride Height Measurement - Rear

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

- Ride height = 2-3
- Measurement 2
- Measurement 3
Courtesy of FORD MOTOR COMPANY
Measure the distance between the flat level surface and the forward lower arm inboard bolt (measurement 2).
Measure the distance between the flat level surface and the center of the forward lower arm outboard bolt (measurement 3).
Subtract measurement 3 from measurement 2 to obtain the rear ride height.
