Throttle Body: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.

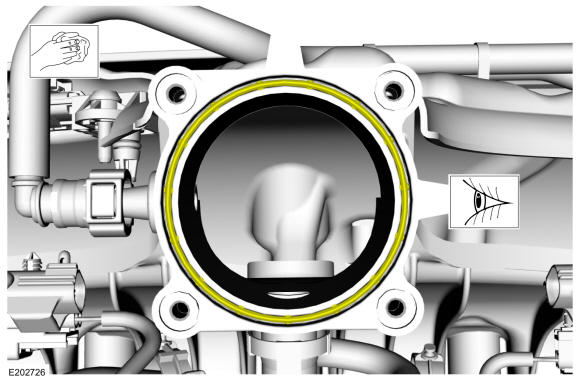

Inspect the Throttle Body (TB) gasket, clean or replace as needed.

Courtesy of FORD MOTOR COMPANY
1. Install the throttle body (TB), then install and tighten the throttle body (TB) bolts, in the sequence shown.
  Torque

  : 89 lb.in (10 Nm)
2. Connect the throttle body (TB) electrical connector, then attach the wire harness from the retaining clip.

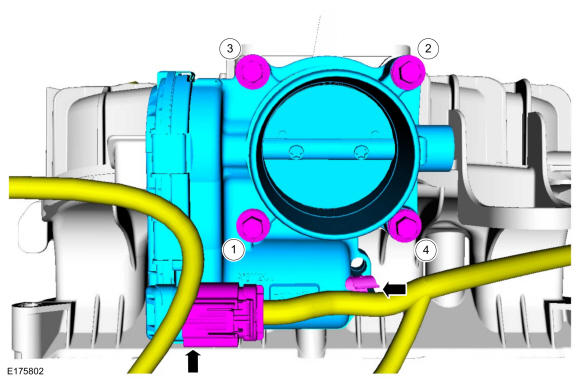

Fig 1: Throttle Body Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.
Position the charge air cooler inlet tube back into position.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield, then install and tighten the underbody shield retainers.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the charge air cooler inlet tube, then tighten the charge air cooler inlet tube clamp.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
