High-Pressure Fuel Pump Drive Unit: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: High-Pressure Fuel Pump .
Use the General Equipment: Hose Clamp(s)

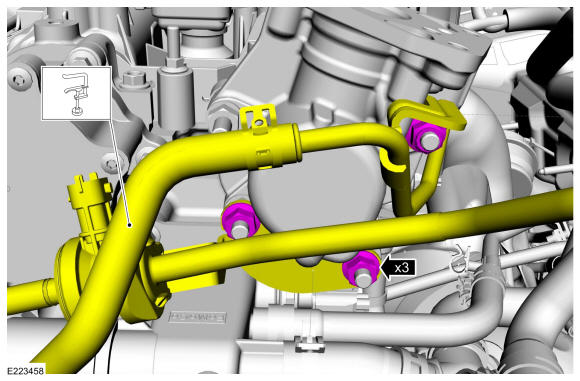

Torque

: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new O-ring is installed.

NOTE: Be prepared to collect escaping fluid.

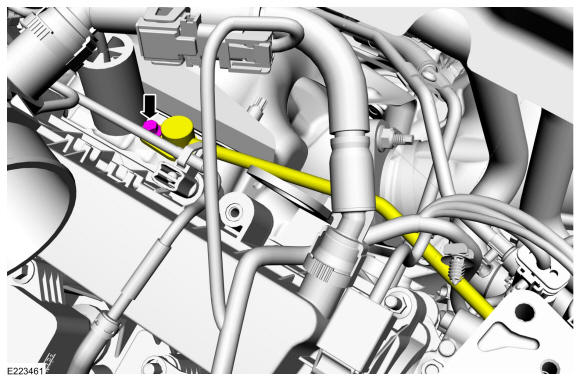

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The seals are to be reused unless damaged.

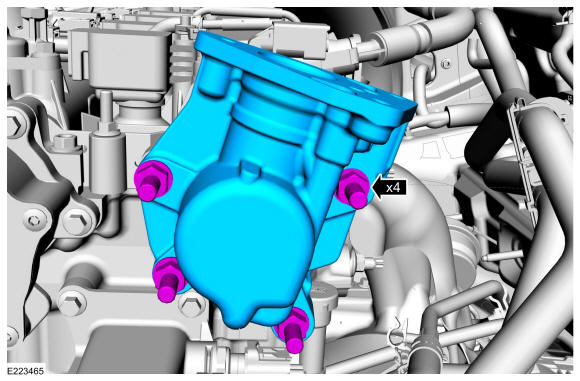

Torque

:Stage 1: 133 lb.in (15 Nm) Stage 2: 60°

Courtesy of FORD MOTOR COMPANY
