Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

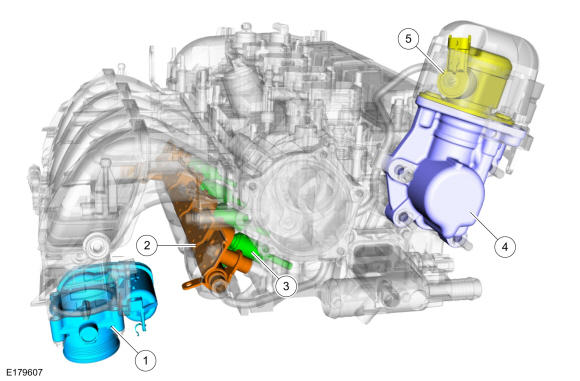

2.3L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Throttle Body (TB) |
| 2 |
Fuel rail |
| 3 |
Fuel injector |
| 4 |
High-pressure fuel pump drive unit |
| 5 |
High-pressure fuel pump |

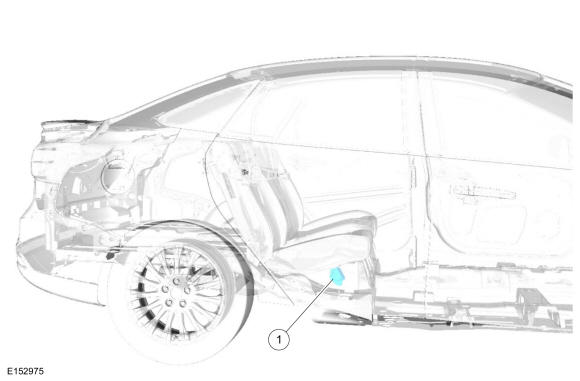

FPDM (fuel pump driver module)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FPDM (fuel pump driver module) |
