Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Loosen the throttle body (TB) inlet tube clamp and then position the throttle body (TB) inlet tube aside.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
1. If equipped. Remove the screws and the deflector shield.
2. Remove the screws and the engine undershield.
Courtesy of FORD MOTOR COMPANY

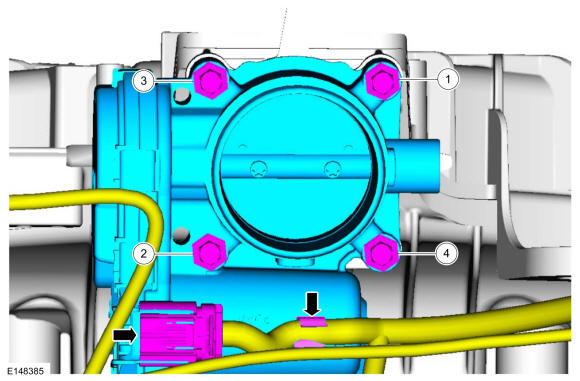

1. Disconnect the throttle body (TB) electrical connector, detach the wire harness from the retaining clip.
2. Remove the bolts and the throttle body (TB).
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

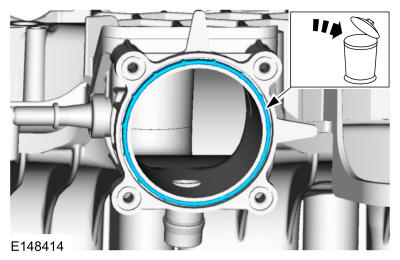

NOTE: Make sure that a new Throttle Body (TB) gasket is installed.

Remove and discard the throttle body (TB) gasket.

Courtesy of FORD MOTOR COMPANY
