Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

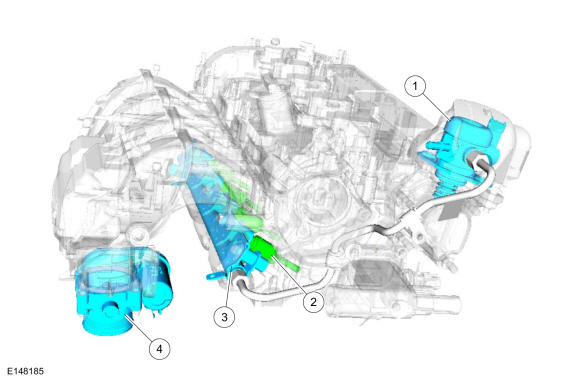

2.0L Gasoline Turbocharged Direct Injection (GTDI)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
High-pressure fuel pump |
| 2 |
Fuel injector |
| 3 |
Fuel rail |
| 4 |
Throttle Body (TB) |

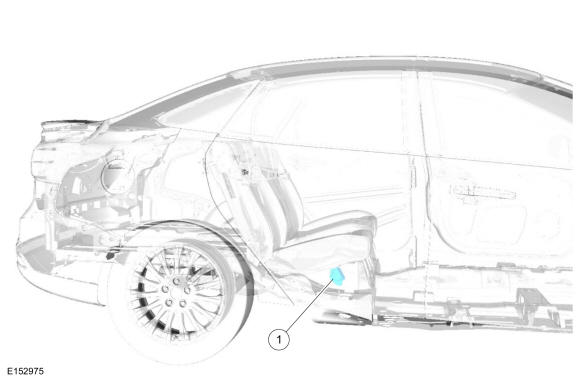

FPDM
 Courtesy of FORD MOTOR COMPANY
|
