Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.
-

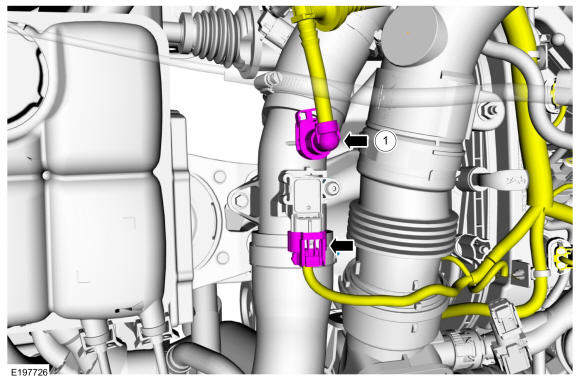

- Disconnect the quick release coupling and the electrical connector. Refer to: Quick Release Coupling .

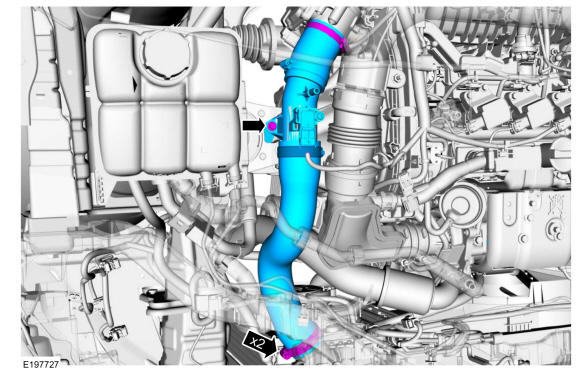

- Loosen the throttle body inlet pipe clamps, remove the bolt and then remove the throttle body inlet pipe.

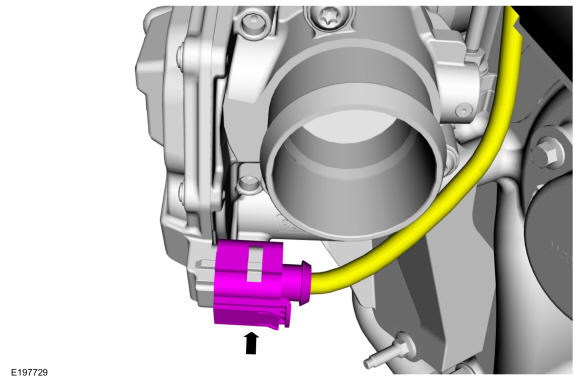

- Disconnect the throttle body electrical connector.

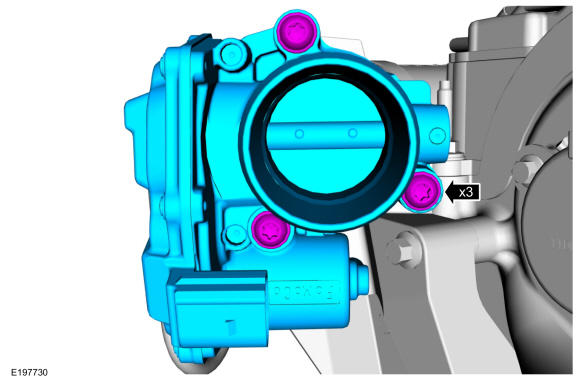

- Remove the throttle body bolts and then remove the throttle body.

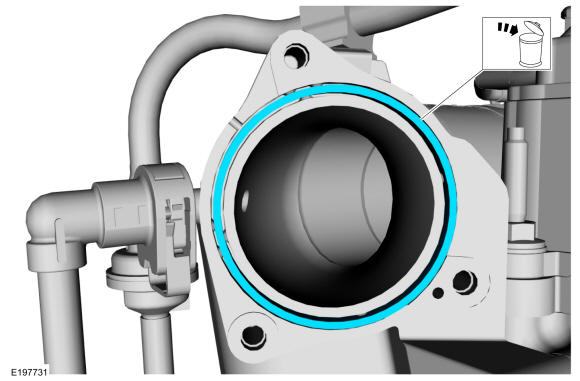

- Remove and discard the throttle body gasket.
