Throttle Body: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating faces are clean and free of foreign material.

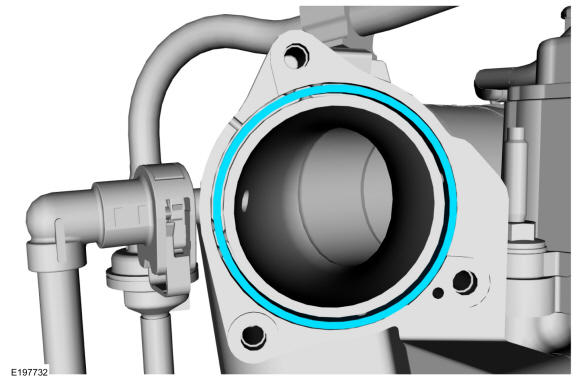

Install a new throttle body gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the Throttle Body (TB) mounting bolts evenly.

Install the throttle body, then install and tighten the throttle body bolts.

Torque

:Stage 1: 44 lb.in (5 Nm) Stage 2: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the throttle body electrical connector.

Courtesy of FORD MOTOR COMPANY

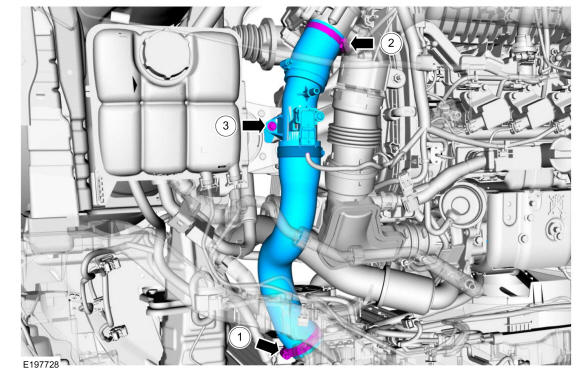

Install the throttle body inlet pipe and install the throttle body inlet pipe bolt finger tight at this stage.
1. Tighten the throttle body inlet pipe clamp.
  Torque

  : 48 lb.in (5.4 Nm)
2. Tighten the throttle body inlet pipe clamp.
  Torque

  : 36 lb.in (4.1 Nm)
3. Tighten the throttle body inlet pipe bolt.
  Torque

  : 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
1. Connect the quick release coupling and the electrical connector. Refer to: Quick Release Coupling .
