High-Pressure Fuel Pump Drive Unit: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the valve cover. Refer to: VALVE COVER .
-
NOTE: Use a heat gun to soften the sealant, this will aid in the removal of the high-pressure fuel pump drive unit. Failure to follow these directions may result in damage to the high-pressure fuel pump drive unit.

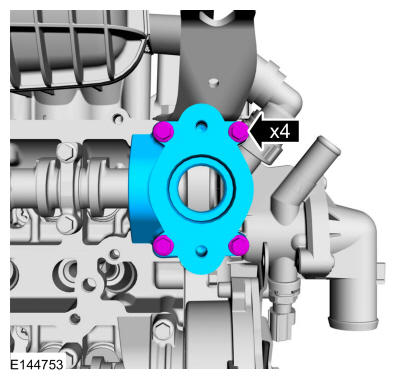

Remove the high-pressure fuel pump drive unit bolts and then remove the high-pressure fuel pump drive unit.
