Removal And Installation: Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
    GFD264606Courtesy of FORD MOTOR COMPANY

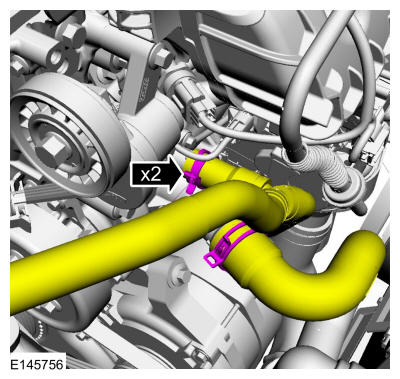

  2. NOTE: Be prepared to collect escaping fluid.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD266877Courtesy of FORD MOTOR COMPANY

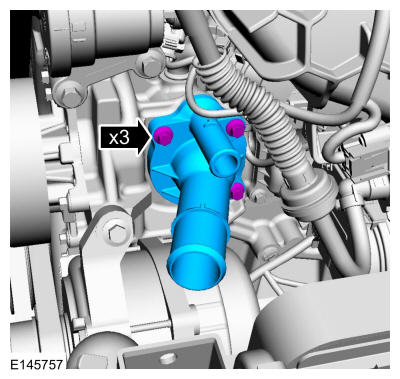

  3. Torque

    : 89 lb.in (10 Nm)

GFD266878Courtesy of FORD MOTOR COMPANY
