Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. G00581743Courtesy of FORD MOTOR COMPANY
    GFD265930Courtesy of FORD MOTOR COMPANY

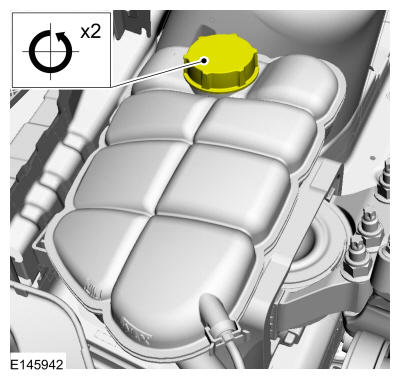

    GFD266904Courtesy of FORD MOTOR COMPANY
  2. Remove the following items:

    1. Refer to: Air Cleaner .
    2. Refer to: Charge Air Cooler (CAC) .

  3. Refer to: Cooling System Draining, Vacuum Filling and Bleeding  .

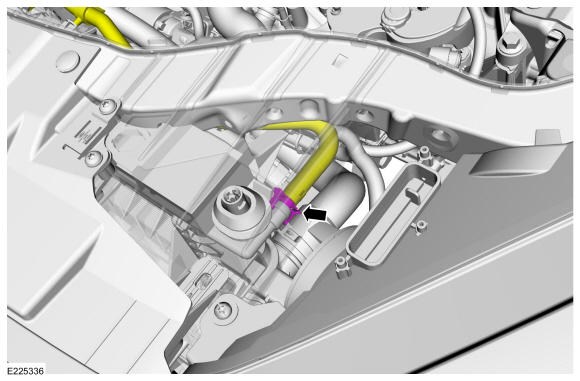

    GFD266905Courtesy of FORD MOTOR COMPANY

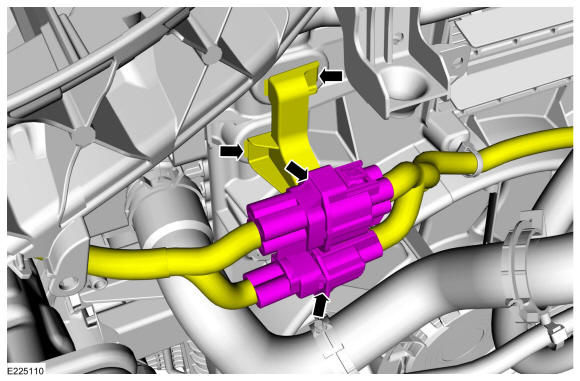

    GFD266906Courtesy of FORD MOTOR COMPANY
  4. Use the General Equipment: Hose Clamp Remover/Installer

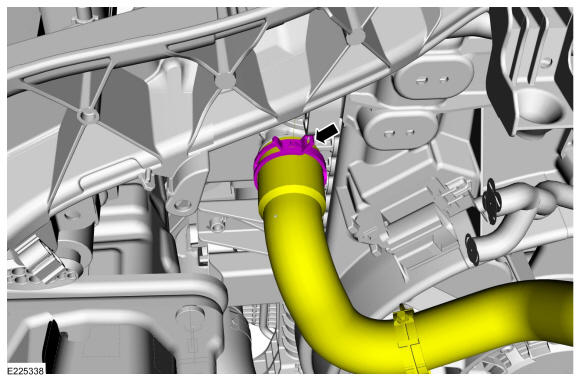

    GFD266907Courtesy of FORD MOTOR COMPANY
  5. Use the General Equipment: Cable Ties

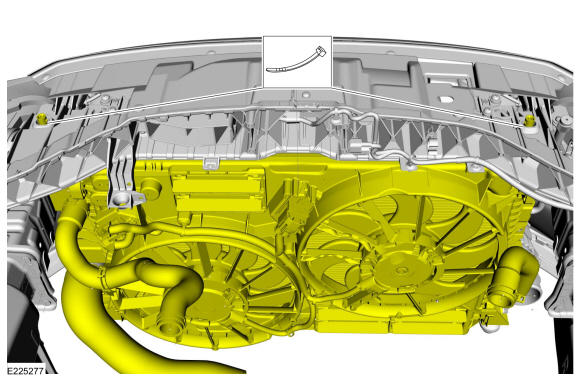

    GFD266908Courtesy of FORD MOTOR COMPANY
  6. Refer to: Jacking and Lifting - Overview .
  7. NOTE: Only tighten the bolts finger tight at this stage.

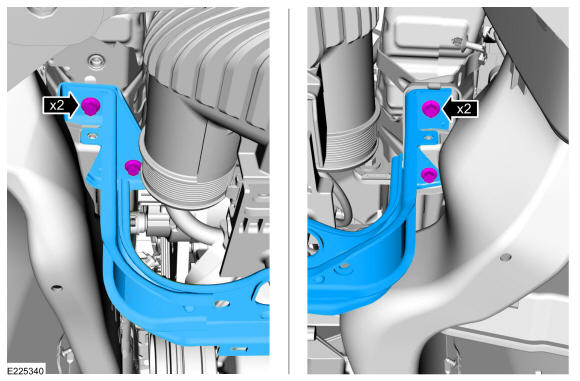

    GFD266909Courtesy of FORD MOTOR COMPANY
  8. Use the General Equipment: Vehicle/Axle Stands

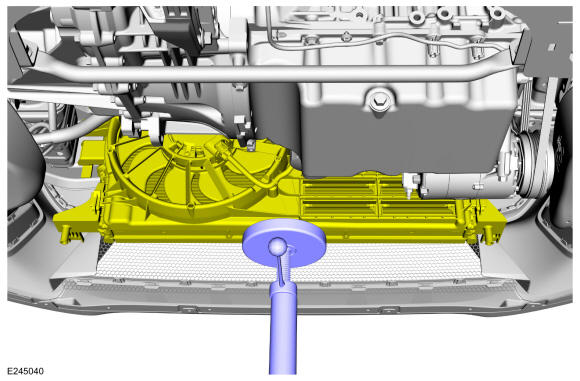

    GFD266910Courtesy of FORD MOTOR COMPANY
  9. Use the General Equipment: Hose Clamp Remover/Installer

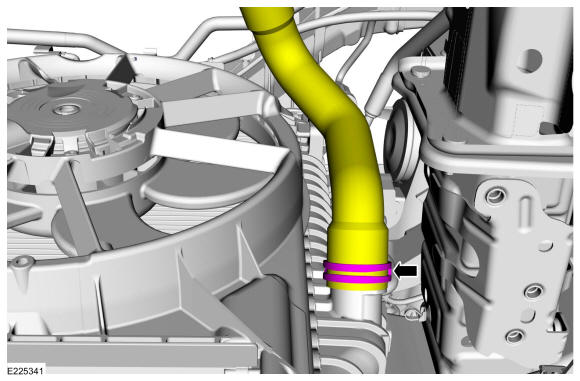

    GFD266911Courtesy of FORD MOTOR COMPANY

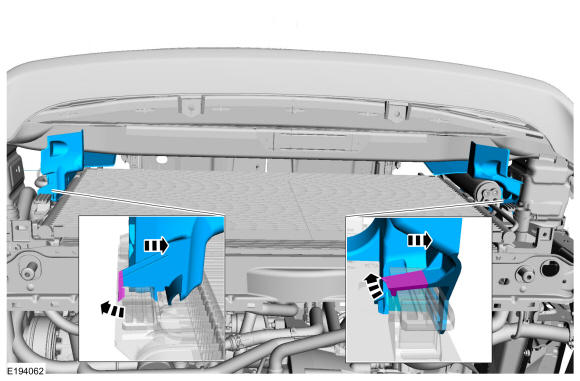

    GFD266912Courtesy of FORD MOTOR COMPANY
  10. NOTE: Make sure that no strain is placed on the refrigerant lines.
  11. Use the General Equipment: Cable Ties

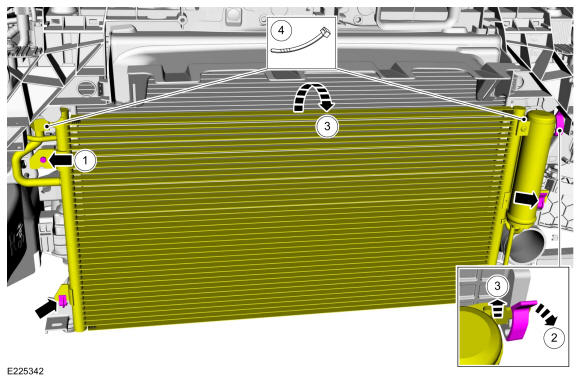

GFD266913Courtesy of FORD MOTOR COMPANY

Remove the following items:

  1. Use the General Equipment: Cable Ties

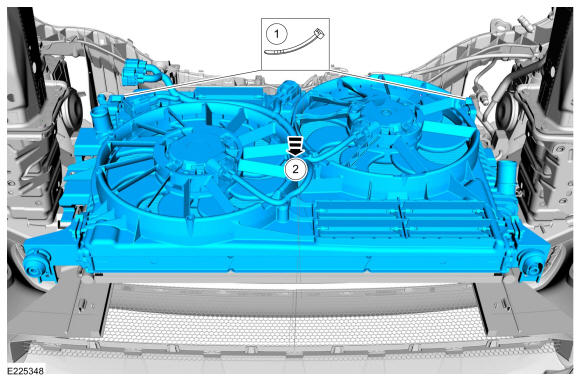

GFD266914Courtesy of FORD MOTOR COMPANY

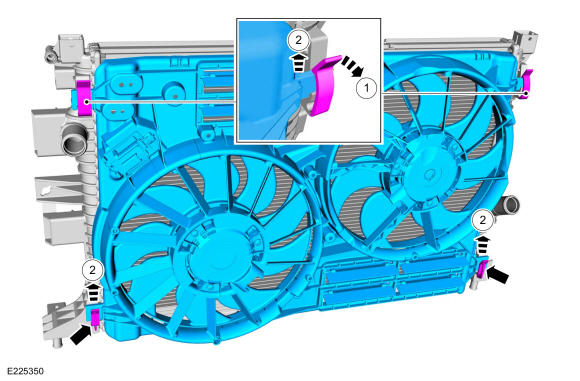

GFD266915Courtesy of FORD MOTOR COMPANY
