Degas Bottle: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .

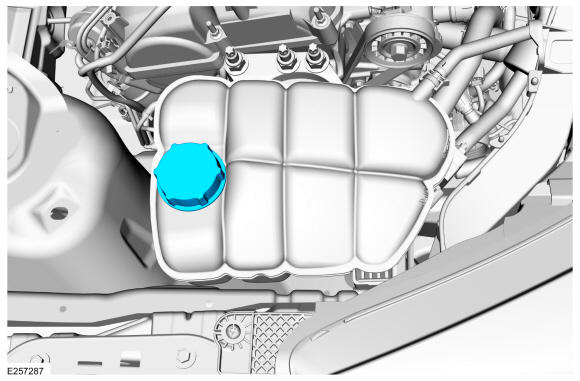

- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Slowly turn the pressure relief cap 1/2 turn and step back while the pressure is released. When all the pressure is released, remove the pressure relief cap.

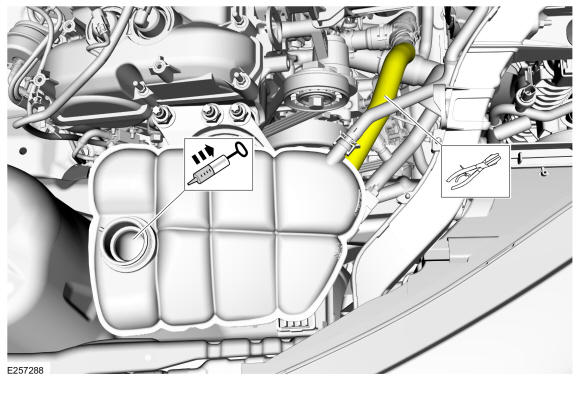

- Using general tools clamp the lower expansion tank hose and siphon the engine coolant from the expansion tank. Use the General Equipment: Fluid Suction Gun. Use the General Equipment: Locking Pliers

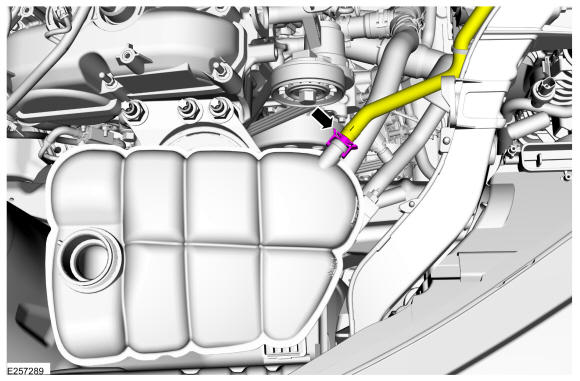

- Depress the tabs and disconnect the upper coolant tube.

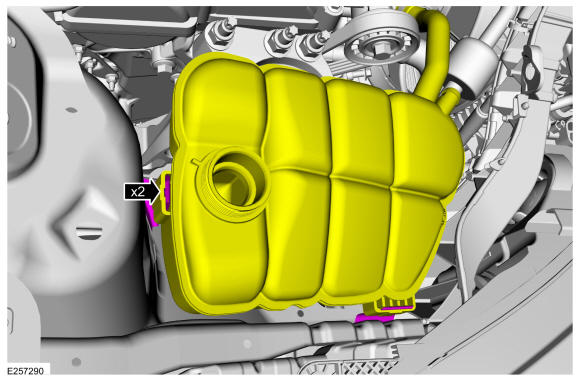

- Release the tabs and position the degas bottle aside.

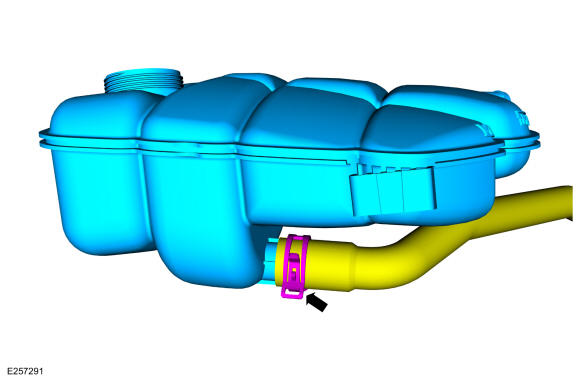

- Release the clamp, disconnect the lower coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
