Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

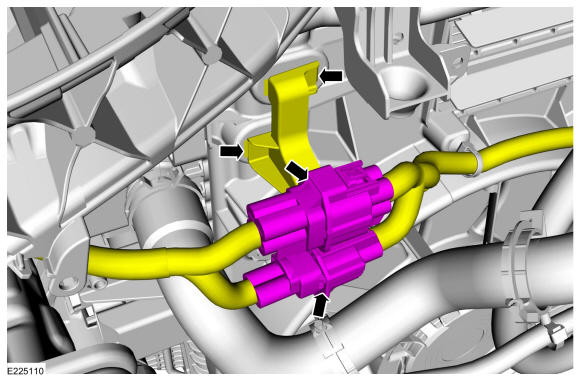

  1. Refer to: Air Cleaner .
    GFD266892Courtesy of FORD MOTOR COMPANY

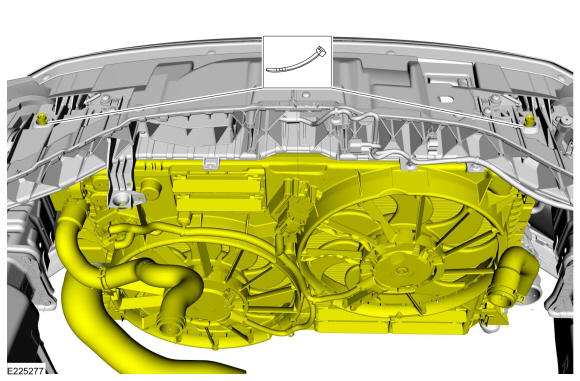

  2. Use the General Equipment: Cable Ties
    GFD266893Courtesy of FORD MOTOR COMPANY
  3. Refer to: Jacking and Lifting - Overview .
    GFD265852Courtesy of FORD MOTOR COMPANY
    GFD266881Courtesy of FORD MOTOR COMPANY

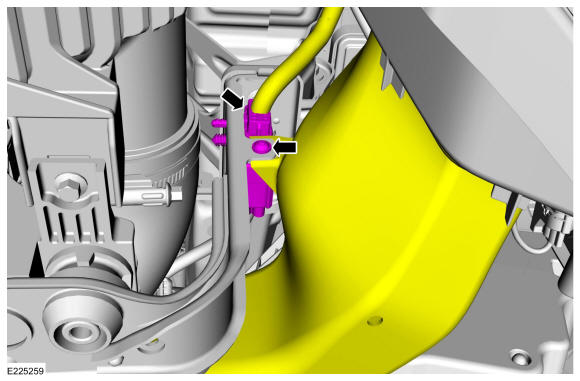

    GFD266894Courtesy of FORD MOTOR COMPANY

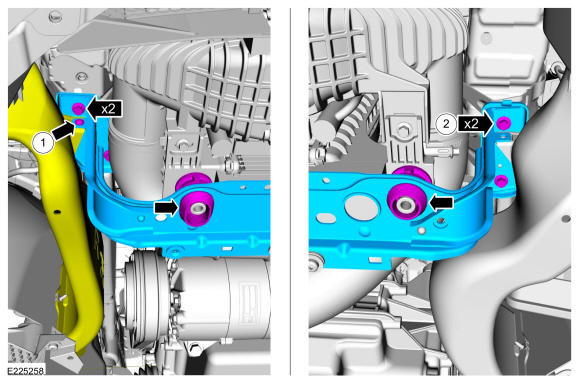

  5. Torque

    : 18 lb.ft (25 Nm)

GFD266895Courtesy of FORD MOTOR COMPANY

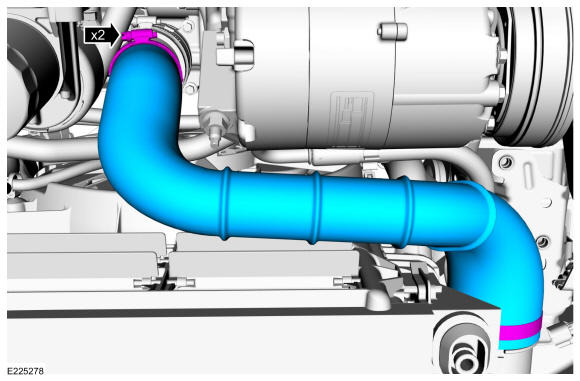

GFD266896Courtesy of FORD MOTOR COMPANY

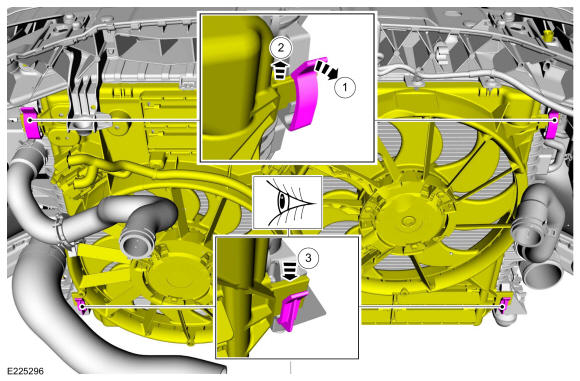

GFD266897Courtesy of FORD MOTOR COMPANY

Refer to: Jacking and Lifting - Overview .

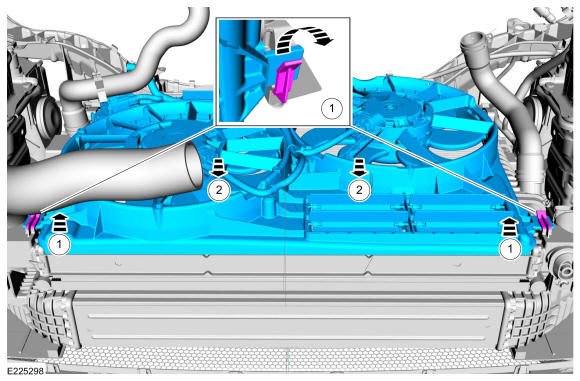

GFD266898Courtesy of FORD MOTOR COMPANY
