Coolant Pump: Removal

WARNING: This page is about a different variant/trim than selected.

Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

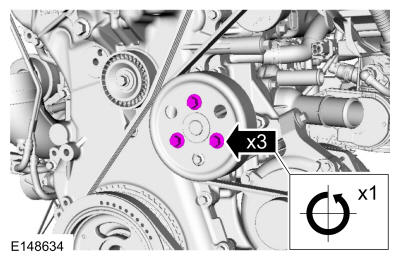

Loosen the coolant pump pulley bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the accessory drive belt is positioned so coolant can not contaminate the belt.

Rotate the accessory drive belt tensioner and remove the accessory drive belt.

Courtesy of FORD MOTOR COMPANY
NOTE: Cover the A/C belt to prevent coolant contamination of the belt.

Completely cover the A/C belt with waterproof plastic.
Remove the bolts and the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY
Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

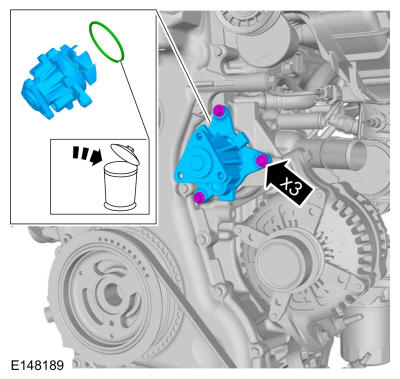

Remove the bolts and the coolant pump.

Courtesy of FORD MOTOR COMPANY
