Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.

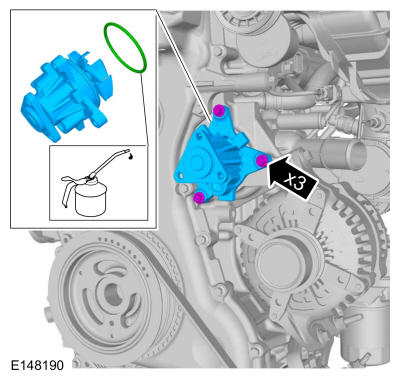

- Lubricate the O-ring seal with clean engine coolant and install the coolant pump.
Material
: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
Torque
: 89 lb.in (10 Nm)

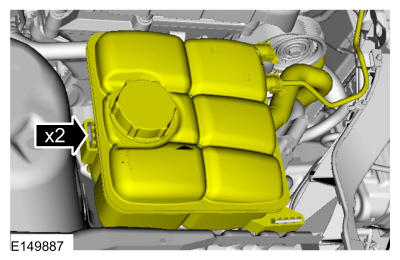

- Install the degas bottle into the retaining tabs.

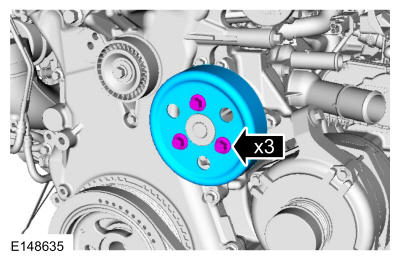

- Install the coolant pump pulley and install the bolts finger tight.

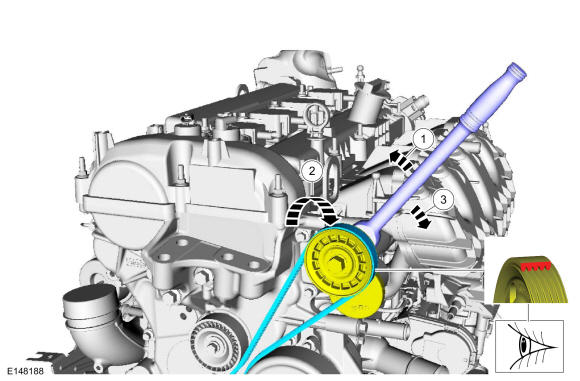

- Remove the waterproof plastic from the A/C belt. Rotate the accessory drive belt tensioner and install the accessory drive belt.

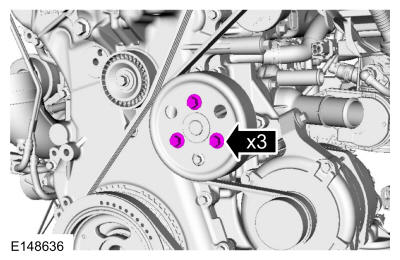

- Tighten the coolant pump pulley bolts.
Torque
: 177 lb.in (20 Nm)
- Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
