Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.
Disconnect the block heater electrical connector.
-
NOTE: If a new block heater is being installed do not use sealer on the threads of the block heater or block opening. Sealer is pre-applied to the block heater threads.

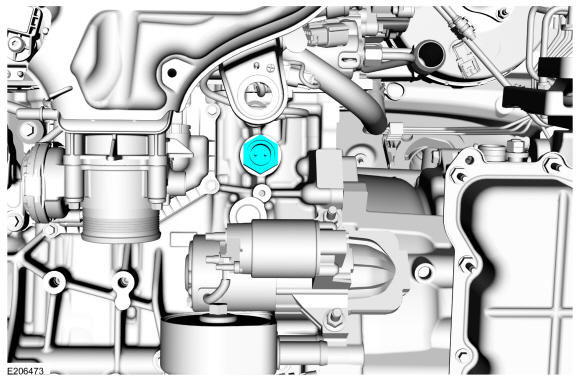

Remove the block heater.
Material
: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)
Torque
: 41 lb.ft (55 Nm)
