Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.

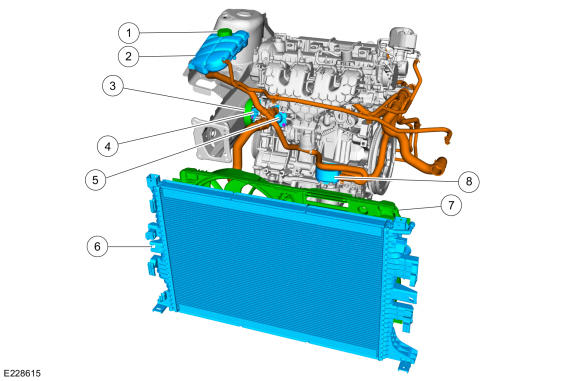

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Pressure relief cap |
| 2 |
Degas bottle |
| 3 |
Coolant pump pulley |
| 4 |
Coolant pump |
| 5 |
Thermostat housing |
| 6 |
Radiator |
| 7 |
Cooling fan motor and shroud |
| 8 |
Oil cooler |

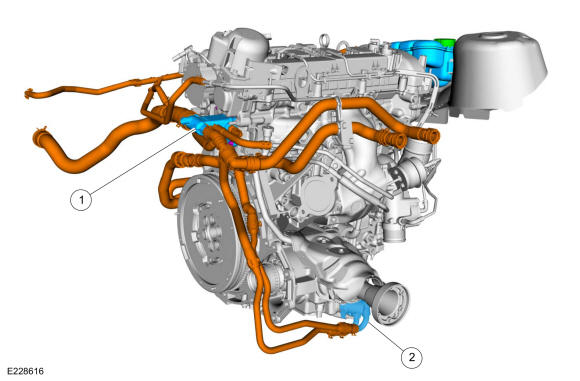

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Coolant outlet connection |
| 1 |
Power Transfer Unit (PTU) cooler |
