Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Remove the cooling module. Refer to: Cooling Module .

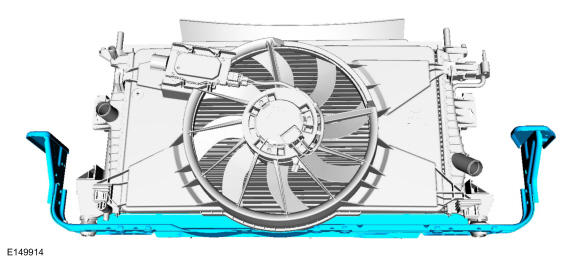

Remove the lower radiator support from the cooling module.

Courtesy of FORD MOTOR COMPANY

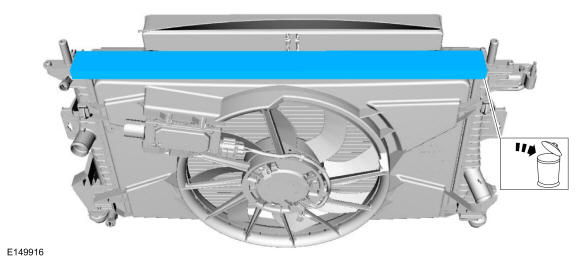

Remove and discard the foam pad. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

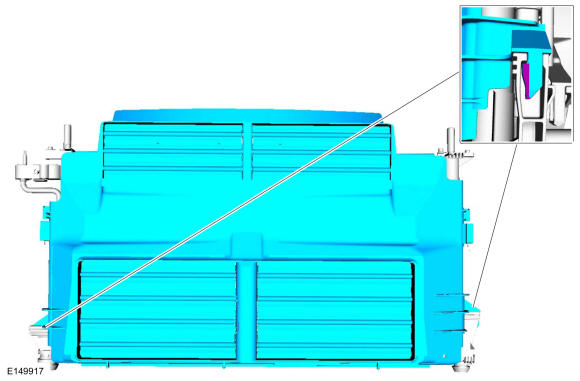

Remove the clips and remove the active grill shutter assembly.

Courtesy of FORD MOTOR COMPANY

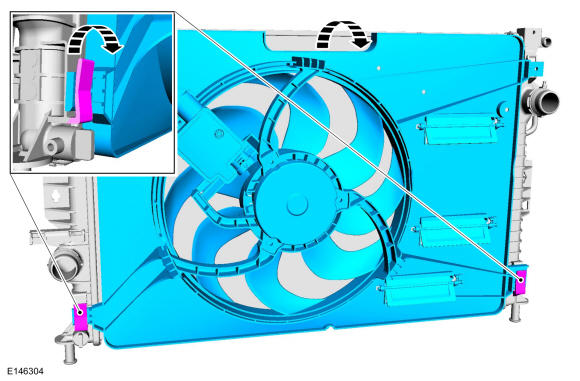

Release the clips and remove the cooling fan motor and shroud.

Courtesy of FORD MOTOR COMPANY

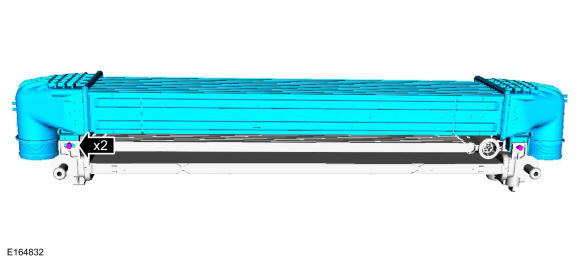

Remove the bolts and the CAC.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

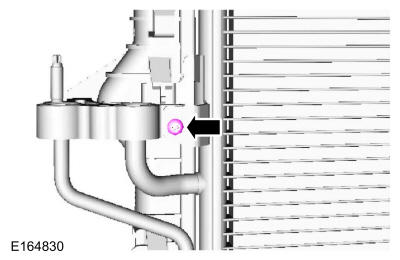

Remove the bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

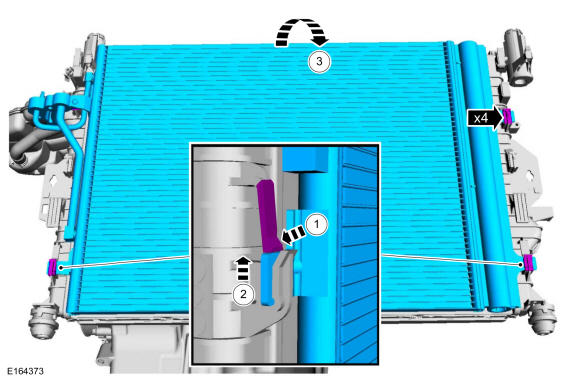

Release the clips and remove the A/C condenser.

Courtesy of FORD MOTOR COMPANY

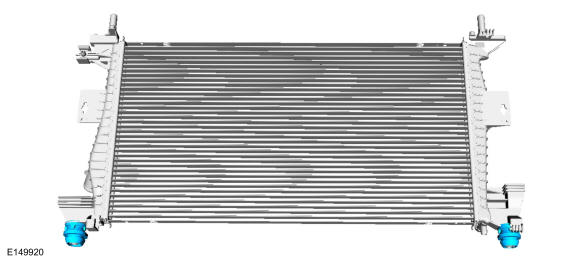

Remove the lower radiator mounts.

Courtesy of FORD MOTOR COMPANY
