Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the air cleaner. Refer to: Air Cleaner .

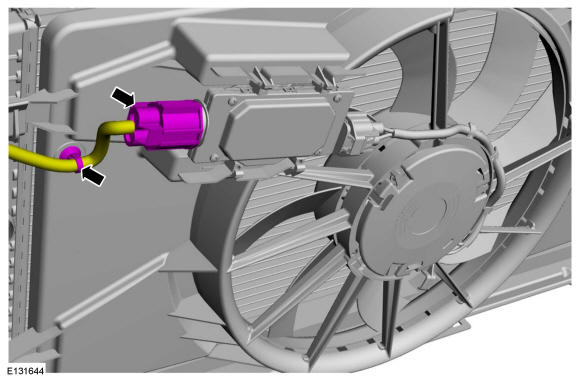

Disconnect the electrical connector and detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

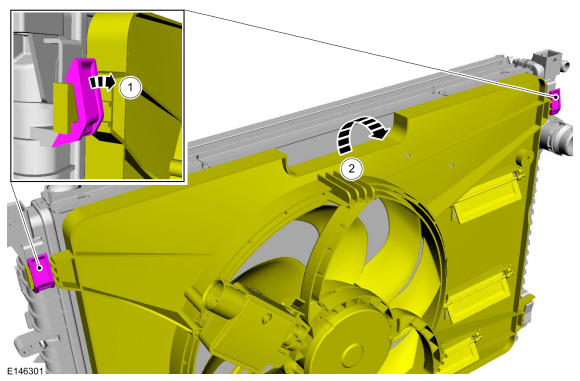

1. Using a suitable tool release the upper tabs.
2. Position the cooling fan motor and shroud upward.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the retainers and the shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

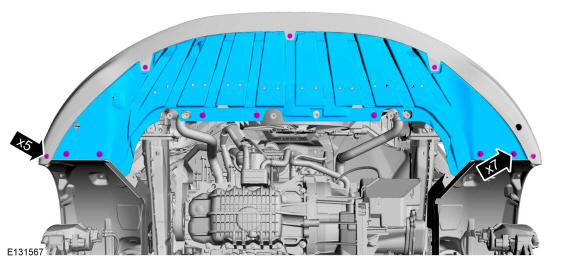

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers, the screws and the lower radiator air deflector.

Courtesy of FORD MOTOR COMPANY
Detach the electrical connectors and the wiring harness retainer from the lower radiator support.

Courtesy of FORD MOTOR COMPANY

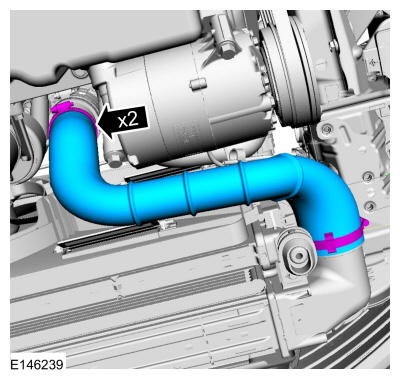

Loosen the clamps and remove the CAC pipe.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

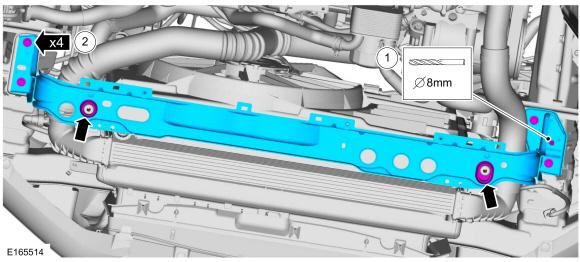

1. NOTE: If equipped, a new rivet nut must be installed during installation.

  If equipped, remove the rivet using a drill bit.
2. Remove the bolts and the lower radiator support.
  Torque

  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

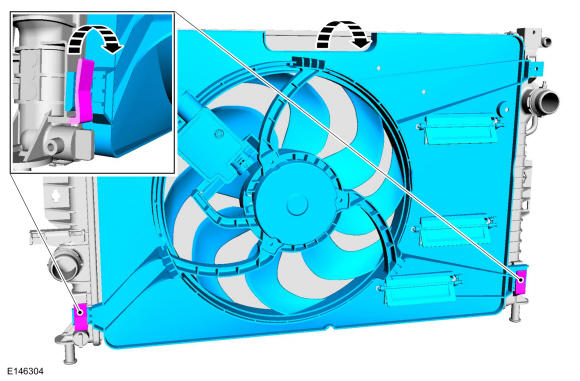

Remove the cooling fan motor and shroud.

Courtesy of FORD MOTOR COMPANY
