Coolant Pump: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
Loosen the coolant pump pulley bolts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

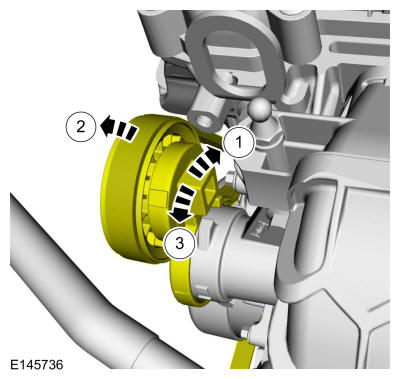

NOTE: Position the accessory drive belt so no coolant will drip on the belt, or the belt may be contaminated.
1. Using a suitable tool retract the accessory drive belt tensioner.
2. Position aside the accessory drive belt.
3. Release the accessory drive belt tensioner.
Courtesy of FORD MOTOR COMPANY

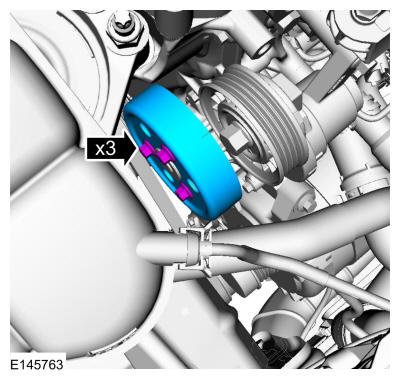

Remove the bolts and the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY

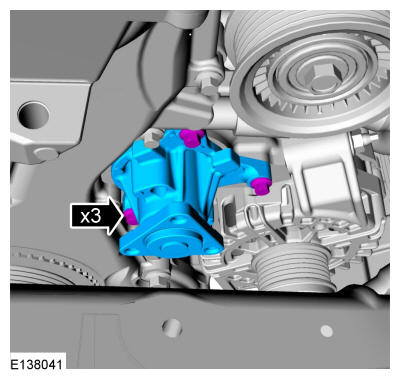

Remove the bolts and the coolant pump.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
