Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the engine appearance cover.
- Remove the sound symposer. Refer to: Sound Symposer .
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

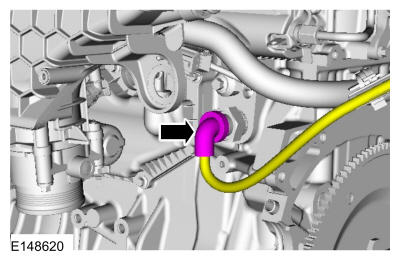

Disconnect the electrical connector.

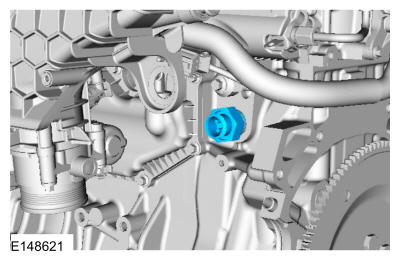

- Remove the block heater.
Torque
: 30 lb.ft (40 Nm)
