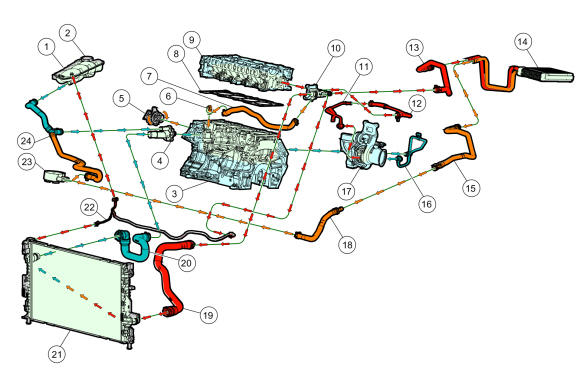

Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Degas bottle |
| 2 | Pressure relief cap |
| 3 | Cylinder block |
| 4 | Thermostat and thermostat housing assembly |
| 5 | Coolant pump |
| 6 | Coolant bypass tube |
| 7 | Coolant bypass hose |
| 8 | Cylinder head gasket |
| 9 | Cylinder head |
| 10 | Coolant outlet adapter |
| 11 | Coolant outlet connector |
| 12 | Coolant outlet tube |
| 13 | Heater core inlet hose |
| 14 | Heater core |
| 15 | Heater core outlet hose |
| 16 | Coolant inlet connector |
| 17 | Turbocharger |
| 18 | Oil cooler inlet hose |
| 19 | Lower radiator hose |
| 20 | Upper radiator hose |
| 21 | Radiator |
| 22 | Air aspirator hose |
| 23 | Oil cooler |
| 24 | Degas bottle-to-engine hose |
