Catalytic Converter: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Power Transfer Unit .

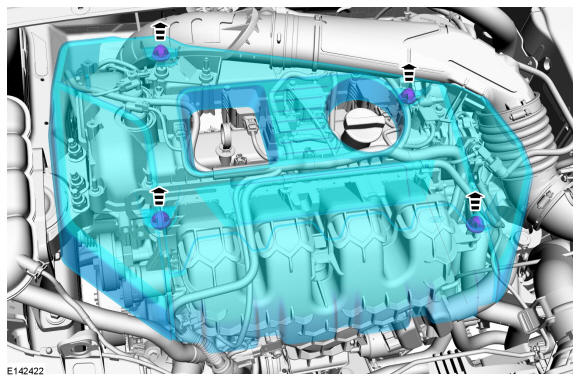

Courtesy of FORD MOTOR COMPANY

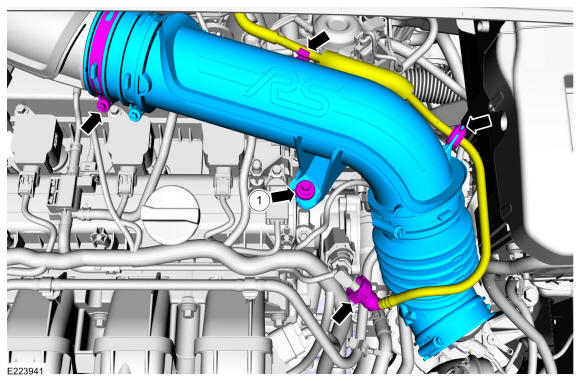

1. Torque
  : 89 lb.in (10 Nm)
2. Refer to: Quick Release Coupling .

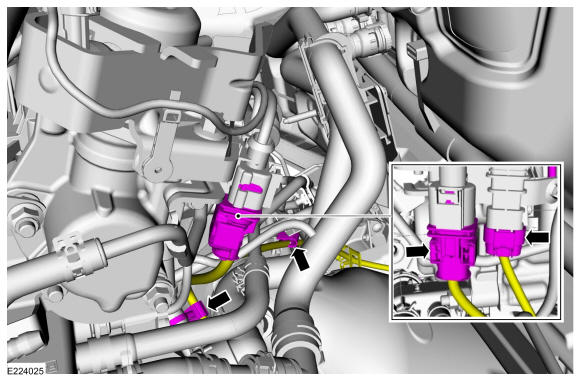

Courtesy of FORD MOTOR COMPANY

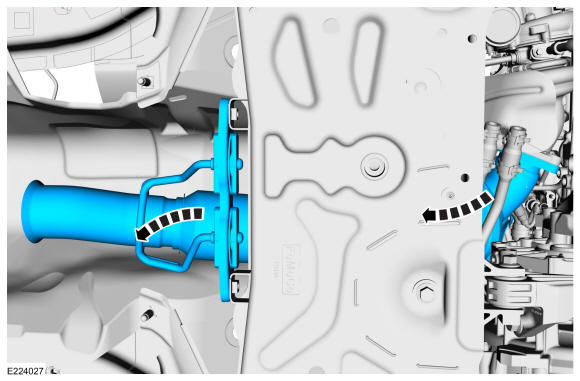

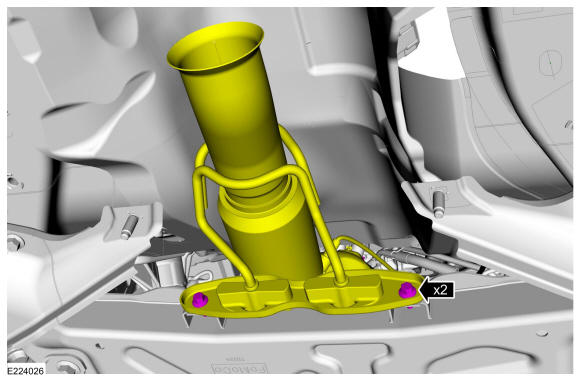

Courtesy of FORD MOTOR COMPANY
Torque
: 35 lb.ft (48 Nm)

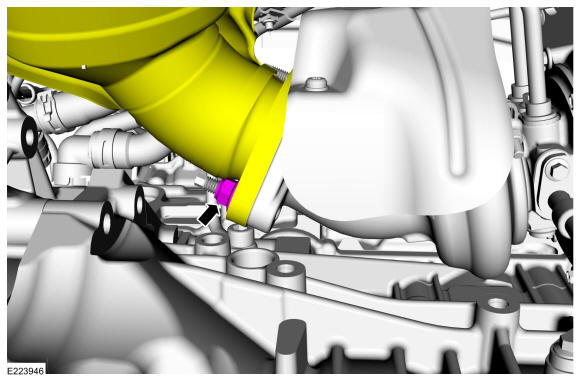

Courtesy of FORD MOTOR COMPANY
Refer to: Jacking and Lifting - Overview .
Torque
: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

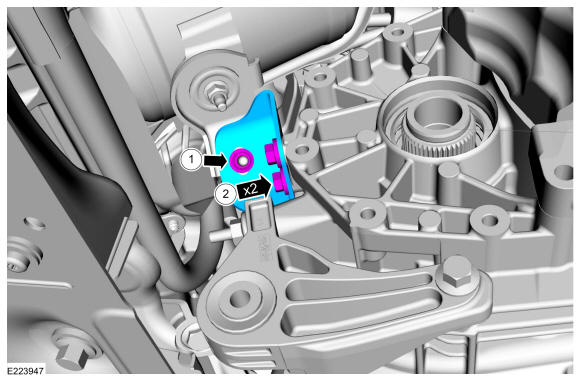

1. Torque
  : 18 lb.ft (25 Nm)
2. Torque
  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

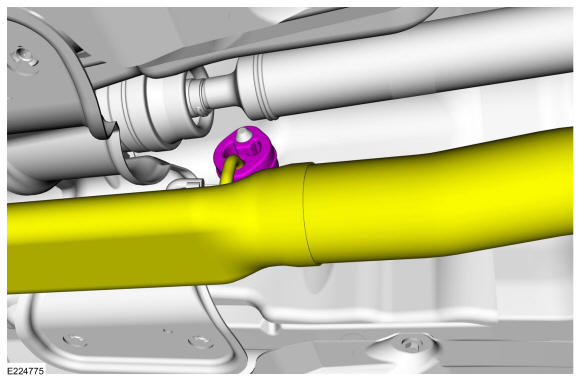

NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

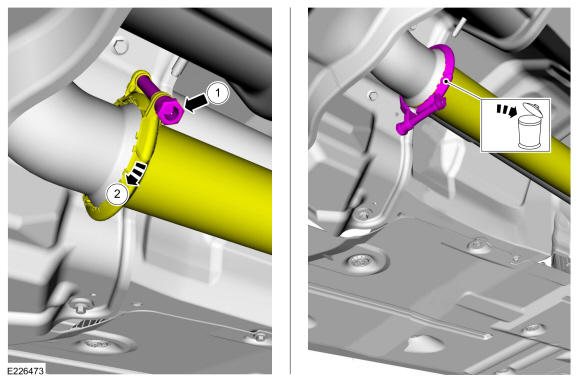

NOTE: Make sure that the clamp is installed to the same orientation as when removed.

NOTE: Make sure that a new clamp is installed.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

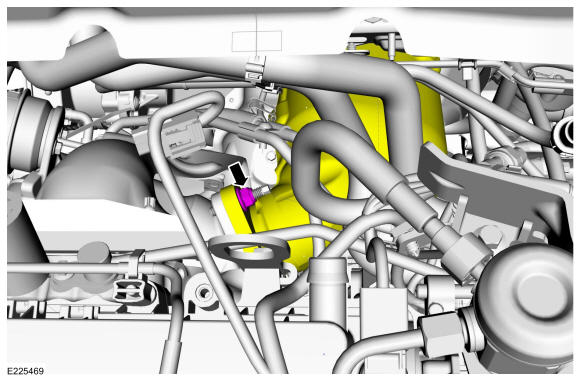

Courtesy of FORD MOTOR COMPANY
Torque
: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Jointing compound must not be used forward of the catalytic converter.

Courtesy of FORD MOTOR COMPANY
