Catalytic Converter: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

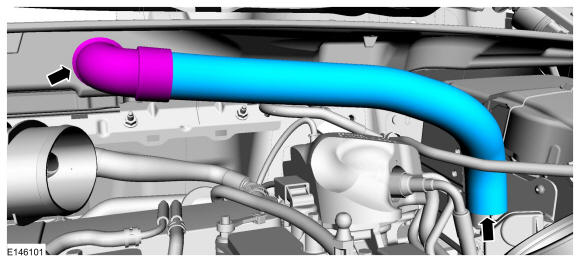

1. Remove the air cleaner outlet pipe mounting retainer.
  Torque

  : 89 lb.in (10 Nm)
2. Loosen the air cleaner outlet pipe clamps and remove the air cleaner outlet pipe.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Disconnect and remove the tube.

Courtesy of FORD MOTOR COMPANY

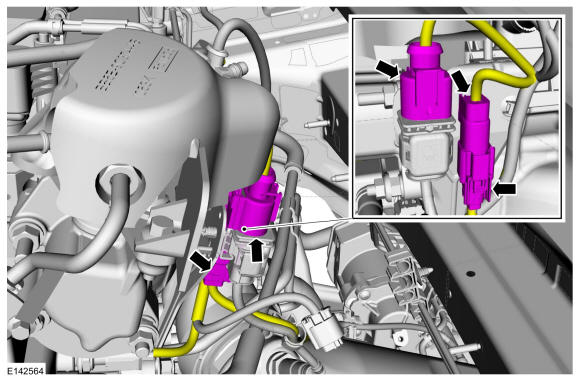

Detach the wiring harness retainer, then disconnect the HO2S and catalyst monitor sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

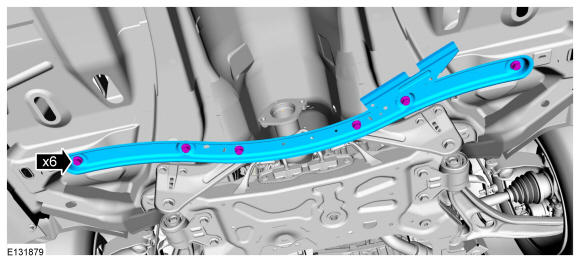

Remove the bolts and the subframe support bracket.
Torque

: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

Support the exhaust flexible pipe with a support wrap or suitable splint. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

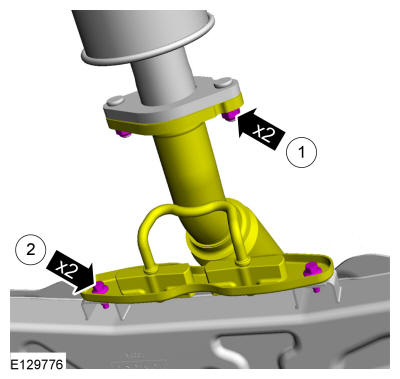

Tighten the nuts in this sequence.
- Remove the catalytic converter mounting bracket nuts.
  Torque

  :1: 18 lb.ft (25 Nm) 2: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
1. Tighten the nuts in this sequence. Remove and discard the nuts and gasket.
  Torque

  : 35 lb.ft (48 Nm)
2. Remove the bolts.
  Torque

  : 18 lb.ft (25 Nm)

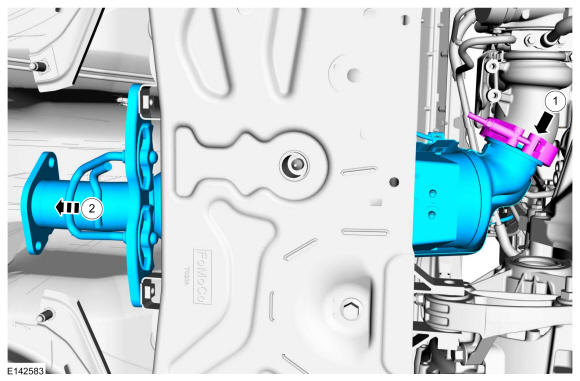

Courtesy of FORD MOTOR COMPANY
Remove the catalytic converter brackets.

Courtesy of FORD MOTOR COMPANY
NOTE: During installation, tighten the nut finger tight at this stage.
1. Remove and discard the clamp.
  Torque

  : 177 lb.in (20 Nm)
2. Remove the catalytic convertor.

Courtesy of FORD MOTOR COMPANY
