Muffler and Tailpipe: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The production muffler and tailpipe assembly is one-piece construction. The service muffler and tailpipe is 3-piece construction. It is necessary to cut the production exhaust system to enable the service section(s) to be fitted. Before cutting any part of the exhaust system, check that the position of the cut is correct in comparison to the service sections to be installed.

NOTE: Service section part(s) use a service section clamp for assembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Typical application shown.

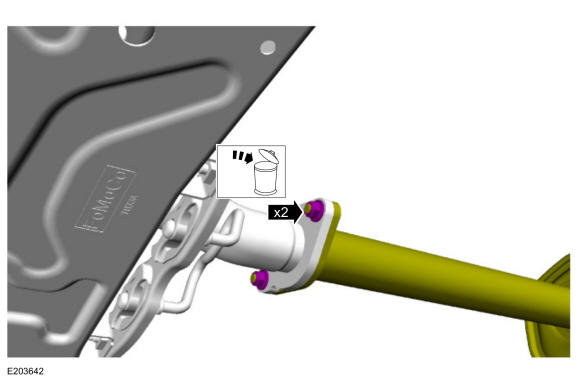

Remove the nuts and gasket and discard.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Torque the service clamps to specifications.

NOTE: Typical application shown.

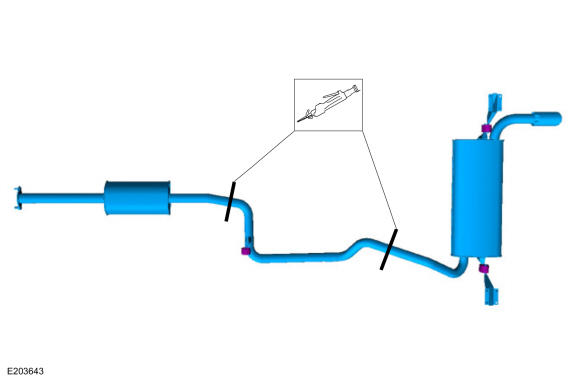

Cut the muffler and tailpipe where needed to complete the repair.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
