Muffler Inlet Pipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

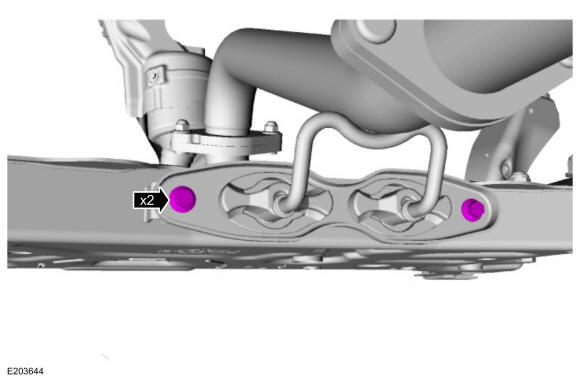

- Remove the exhaust isolator bracket bolts.
Torque
: 18 lb.ft (25 Nm)

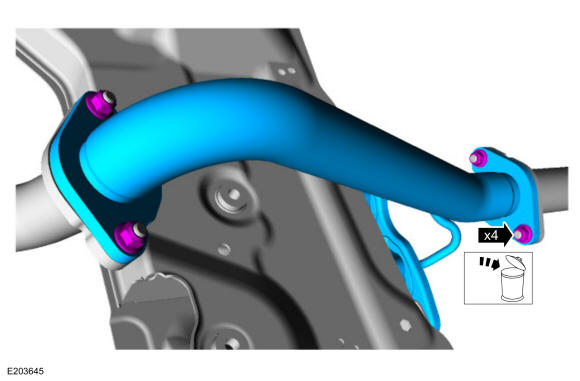

- Remove the nuts and gaskets and discard. Remove the muffler inlet pipe.
Torque
: 35 lb.ft (48 Nm)
