Catalytic Converter: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

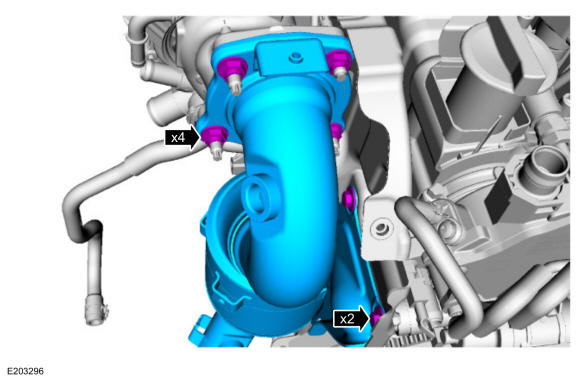

NOTE: Only tighten the nuts and bolts finger tight at this stage.

Install a new gasket and loosely install the nuts and bolts.

Courtesy of FORD MOTOR COMPANY

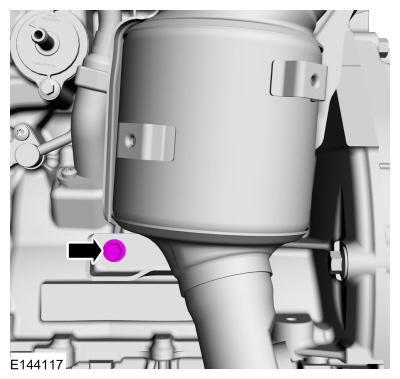

NOTE: Only tighten the bolt finger tight at this stage.

Loosely install the bolt.

Courtesy of FORD MOTOR COMPANY

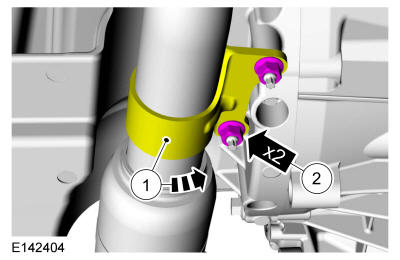

1. Position the bracket.
2. Install the nuts.
  Torque

  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

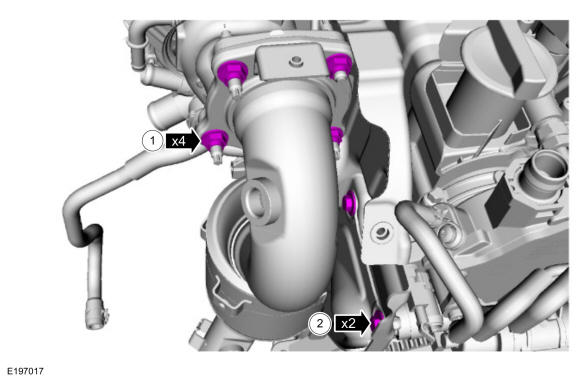

Tighten the nuts and bolts in the sequence shown.
Torque

:1: 18 lb.ft (25 Nm) 2: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
