Power Transfer Unit Rear Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the underbody shield.
    GFD268935Courtesy of FORD MOTOR COMPANY
  3. On both sides.

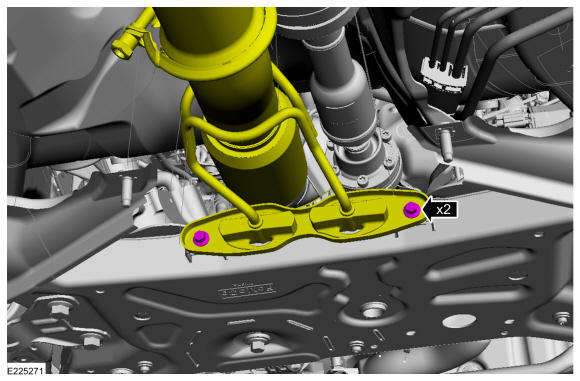

    GFD269101Courtesy of FORD MOTOR COMPANY

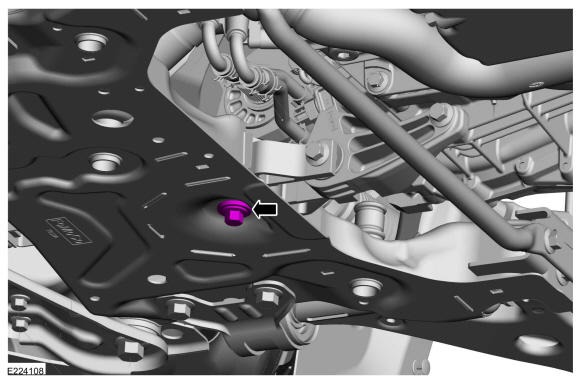

    GFD269102Courtesy of FORD MOTOR COMPANY
    GFD269103Courtesy of FORD MOTOR COMPANY

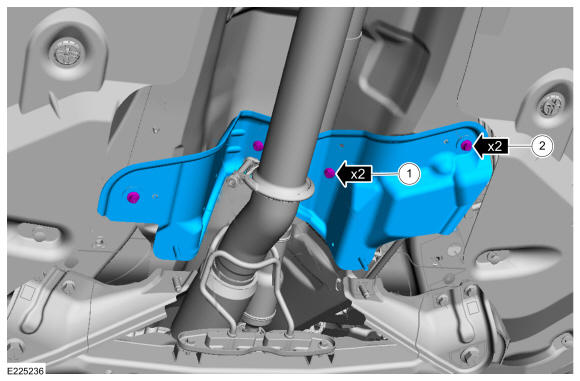

    GFD269104Courtesy of FORD MOTOR COMPANY
    GFD269105Courtesy of FORD MOTOR COMPANY
  4. NOTE: Note the position of the component before removal.

    Torque

    : 26 lb.ft (35 Nm)

    GFD269106Courtesy of FORD MOTOR COMPANY
  5. Fabricate a tool
    GFD269107Courtesy of FORD MOTOR COMPANY
    GFD269108Courtesy of FORD MOTOR COMPANY

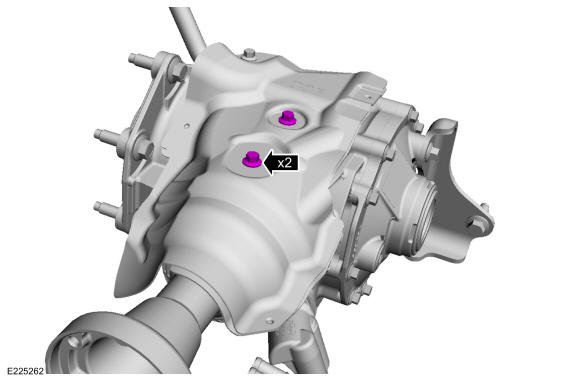

    GFD269109Courtesy of FORD MOTOR COMPANY
  6. NOTE: Note the position of the components before removal.

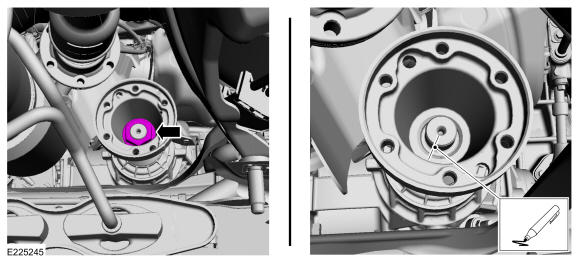

    GFD269110Courtesy of FORD MOTOR COMPANY
  7. Use the General Equipment: Two Leg Puller

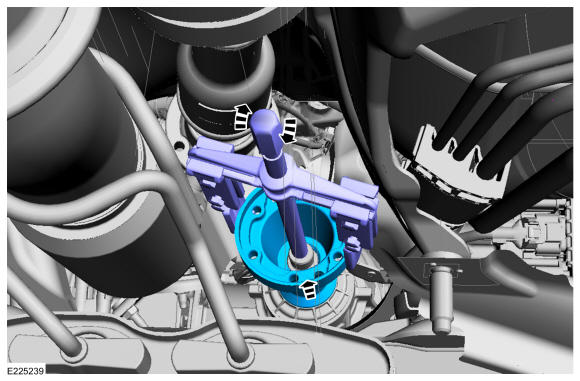

    GFD269111Courtesy of FORD MOTOR COMPANY

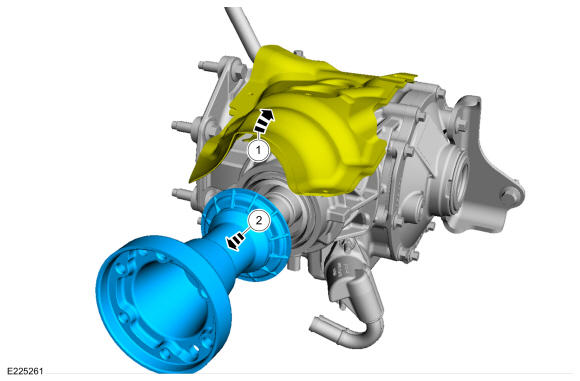

    GFD269112Courtesy of FORD MOTOR COMPANY

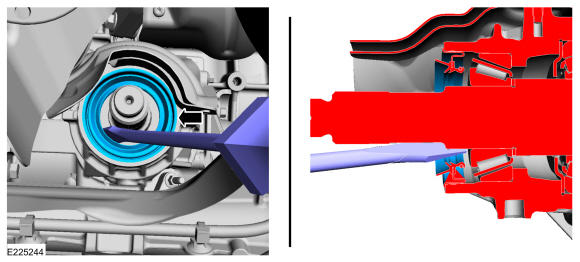

  8. Use the General Equipment: Flat Headed Screw Driver
GFD269113Courtesy of FORD MOTOR COMPANY
