Power Transfer Unit Rear Seal: Installation

WARNING: This page is about a different variant/trim than selected.

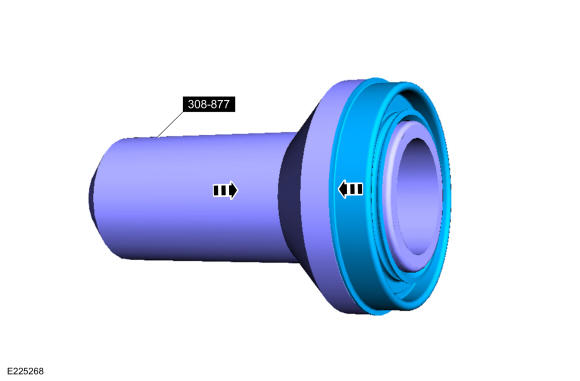

Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

Courtesy of FORD MOTOR COMPANY

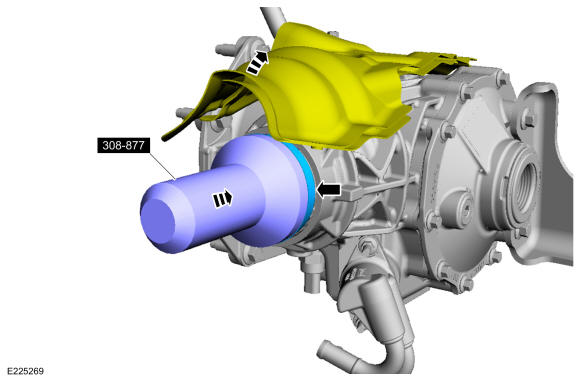

Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

Courtesy of FORD MOTOR COMPANY

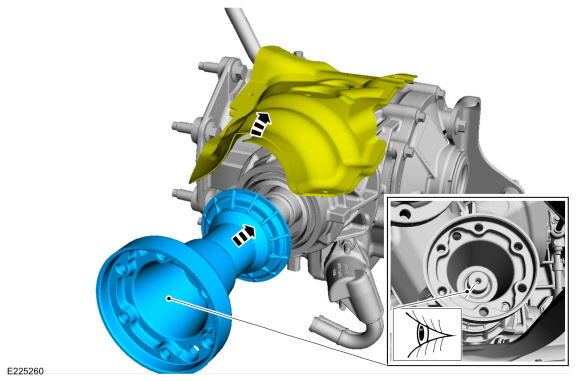

Make sure that the component is installed to the position noted before removal.

Courtesy of FORD MOTOR COMPANY

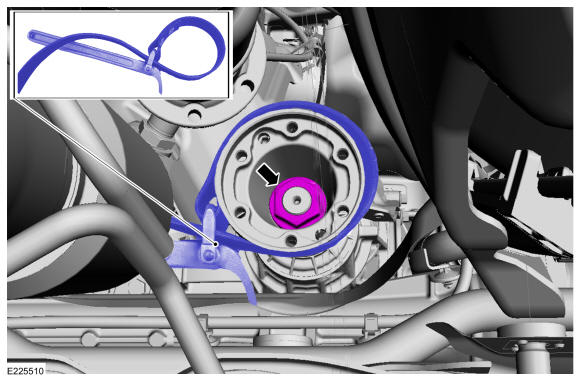

Use the General Equipment: Oil Filter Wrench.
Torque

: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY
Torque
: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
Make sure that the component is installed to the position noted before removal.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Torque
: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
1. Torque
  : 18 lb.ft (25 Nm)
2. Torque
  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
1. Torque
  : 18 lb.ft (25 Nm)
2. Torque
  : 35 lb.ft (48 Nm)
3. Torque
  : 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY
Torque
: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides.
Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides.

Courtesy of FORD MOTOR COMPANY
Refer to: Power Transfer Unit Fluid Level Check .

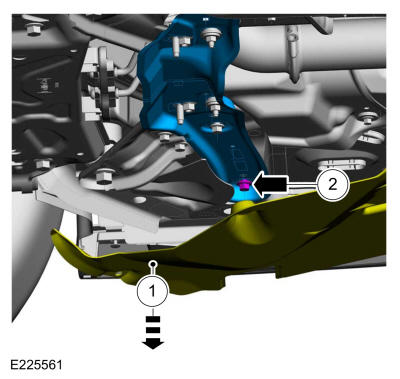

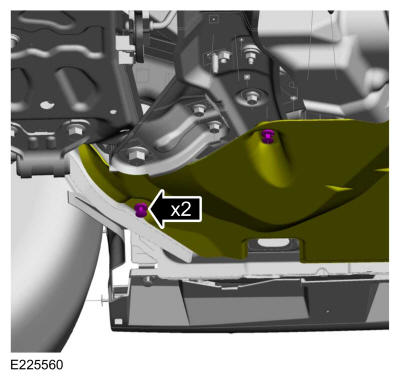

Install the underbody shield.
