Power Transfer Unit Input Shaft Seal - RHD: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the PTU/transfer case. Refer to: Power Transfer Unit .

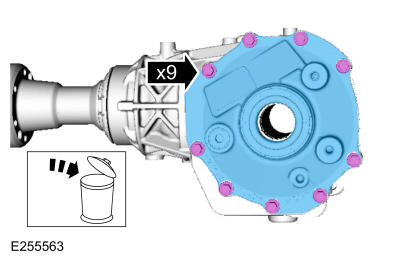

- Remove the PTU cover bolts and PTU cover.

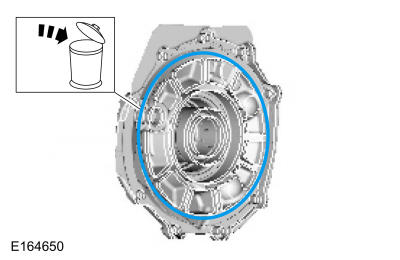

- Remove and discard the PTU cover O-ring seal.
- Remove and discard the RH input shaft seal.
