Power Transfer Unit Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner. Refer to: Air Cleaner .

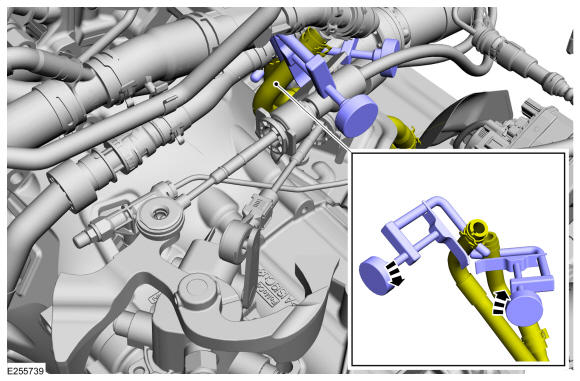

- Using the hose clamps, pinch off the PTU coolant hoses. Use the General Equipment: Hose Clamp(s)
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the under body shield.
-
NOTE: Be prepared to collect escaping fluid.

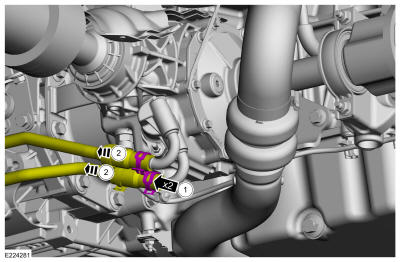

Remove the PTU cooler lines and position aside.
-
NOTE: Be prepared to collect escaping fluid.

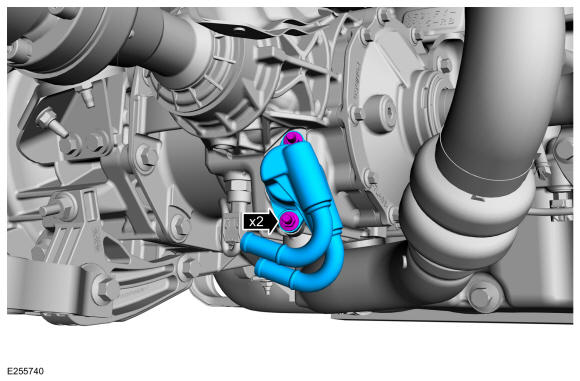

Remove the PTU cooler bolts and the PTU cooler.
